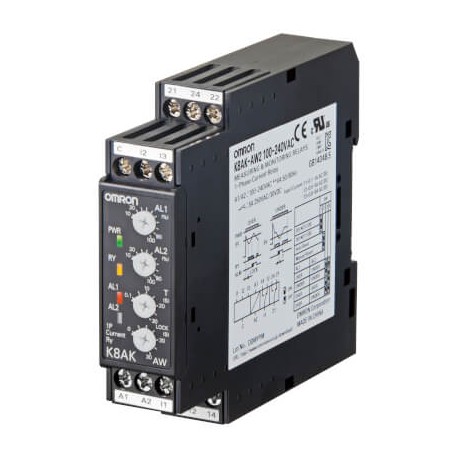

OMRON K8AK-AW2 24VAC/DC K8AK-AW2 24VAC/DC K8AK0010M K8AKAW224VACDC OMRON Single phase Current Max and Min 0,1-8A, 24VAC/DC 2 SPDT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K8AK-AW2 24VAC/DC K8AK0010M K8AKAW224VACDC OMRON Single phase Current Max and Min 0,1-8A, 24VAC/DC 2 SPDT

K8AK-AW2 24VAC/DC

K8AK0010M

K8AKAW224VACDC

OMRON

1 Pcs.

Single phase Current Max and Min 0,1-8A, 24VAC/DC 2 SPDT Monitoring relay 22.5mm wide, Single phase over or under current 0.1 to 8A AC or DC, Two SPDT, 24VAC/DC

Automation > Current monitoring relay
K8AK

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

FunctionsOver/under current
Installation typeDIN rail
Terminal typeScrew
Size22.5 mm
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Output typeRelay
Contact description2 x SPDT
Body colorBlack
External current transformer

ETIM for 378167 Relays (EC001440)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
Voltage type (supply voltage) (EF002991) AC/DC
Three-phase under current possible (EF003406) No
Function DC-current hysteresis (EF003411) Yes
Single-phase under current possible (EF003405) Yes
External power supply required (EF003292) Yes
Contains function DC-voltage overcurrent (EF003410) No
With detachable clamps (EF003340) No
External current transformer (EF001923) No
Single-phase overcurrent possible (EF003407) Yes
Three-phase overcurrent possible (EF003408) No
Contains function DC-voltage under current (EF003409) No
Single-phase hysteresis possible (EF003394) Yes
Three-phase hysteresis possible (EF003395) No
Number of contacts as change-over contact (EF008257) 2
Number of contacts as normally open contact (EF008256) 0
Min. adjustable delay-on energization time (EF008190) 0.1 s
Max. permitted delay-on energization time (EF008189) 30 s
Min. adjustable off-delay time (EF008192) 0.1 s
Width (EF000008) 22.5 mm
Number of contacts as normally closed contact (EF008255) 0
Height (EF000040) 90 mm
Rated switch current (EF006706) 5 A
Max. permitted off-delay time (EF008191) 30 s
Depth (EF000049) 100 mm
Supply voltage AC 50 Hz (EF007532) 20.4 V
Current measuring range (EF000417) 0.1 A
Supply voltage AC 60 Hz (EF007533) 20.4 V
Supply voltage DC (EF007534) 20.4 V
