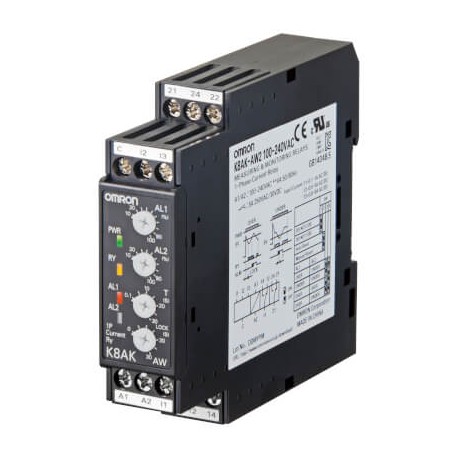

OMRON K8AK-AW2 100-240VAC K8AK-AW2 100-240VAC K8AK0009G K8AKAW2100240VAC OMRON Single phase Current Max and Min 0,1-8A 100-240VAC 2 SP.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K8AK-AW2 100-240VAC K8AK0009G K8AKAW2100240VAC OMRON Single phase Current Max and Min 0,1-8A 100-240VAC 2 SP..

K8AK-AW2 100-240VAC

K8AK0009G

K8AKAW2100240VAC

OMRON

1 Pcs.

Single phase Current Max and Min 0,1-8A 100-240VAC 2 SPDT Monitoring relay 22.5mm wide, Single phase over or under current 0.1 to 8A AC or DC, Two SPDT, 100-240 VAC

Automation > Current monitoring relay
K8AK

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron K8AK-AW2 100-240VAC acts as a protective single phase current monitoring relay that guards electrical equipment from current overloads and drops. Industrial facilities implement these DIN rail devices to oversee critical power feeds and prevent unplanned mechanical stoppages.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Functions: Over/under current
  • Installation type: DIN rail
  • Terminal type: Screw
  • Size: 22.5 mm
  • Supply voltage AC: 100-240 V
  • Output type: Relay
  • Contact description: 2 x SPDT
  • Body color: Black
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Three-phase under current possible (EF003406): No
  • Function DC-current hysteresis (EF003411): Yes
  • Single-phase under current possible (EF003405): Yes
  • External power supply required (EF003292): Yes
  • Contains function DC-voltage overcurrent (EF003410): No
  • With detachable clamps (EF003340): No

More info

▲

Specifications

FunctionsOver/under current
Installation typeDIN rail
Terminal typeScrew
Size22.5 mm
Supply voltage AC100-240 V
Output typeRelay
Contact description2 x SPDT
Body colorBlack
External current transformer

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
