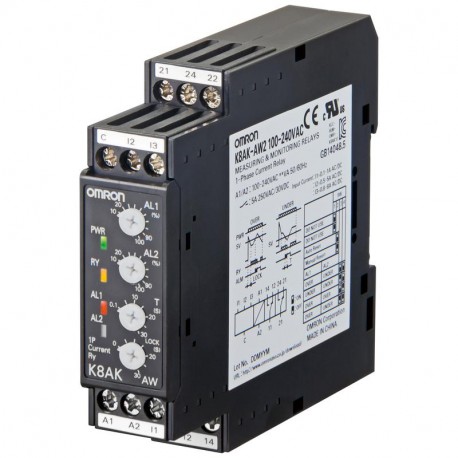

OMRON K8AK-AW1 24VAC/DC K8AK-AW1 24VAC/DC K8AK0008R K8AKAW124VACDC OMRON Single-phase Current, Max, and Min 20-500mA 24VAC/DC 2 SPDT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K8AK-AW1 24VAC/DC K8AK0008R K8AKAW124VACDC OMRON Single-phase Current, Max, and Min 20-500mA 24VAC/DC 2 SPDT

K8AK-AW1 24VAC/DC

K8AK0008R

K8AKAW124VACDC

OMRON

1 Pcs.

Single-phase Current, Max, and Min 20-500mA 24VAC/DC 2 SPDT Monitoring relay 22.5mm wide, Single phase over or under current 2 to 500mA AC or DC, Two SPDT, 24VAC/DC

Automation > Current monitoring relay
K8AK

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for versatile industrial applications, the Omron K8AK-AW1 24VAC/DC single-phase current monitoring relay provides dependable over- and under-current protection for electrical assets. These devices are commonly integrated into control panels to prevent motor burnout and maintain stable system performance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Functions: Over/under current
  • Installation type: DIN Rail
  • Terminal: Screw
  • Size: 22.5 mm
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Output type: Relay
  • Contact description: 2 x SPDT
  • Body color: Black
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Three-phase under current possible (EF003406): No
  • Function DC-current hysteresis (EF003411): Yes
  • Single-phase under current possible (EF003405): Yes
  • External power supply required (EF003292): Yes
  • Contains function DC-voltage overcurrent (EF003410): No

More info

▲

Specifications

FunctionsOver/under current
Installation typeDIN Rail
TerminalScrew
Size22.5 mm
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Output typeRelay
Contact description2 x SPDT
Body colorBlack
External current transformer

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
