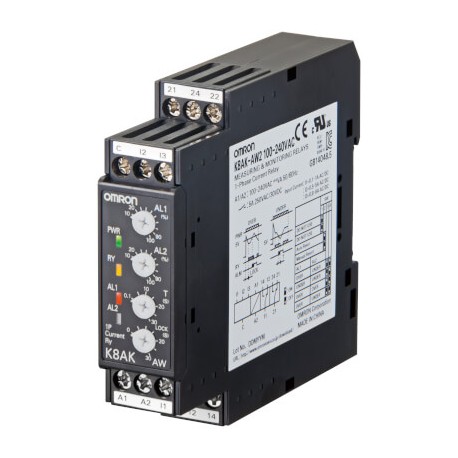

OMRON K8AK-AW1 100-240VAC K8AK-AW1 100-240VAC K8AK0007M K8AKAW1100240VAC OMRON Single-phase Current, Max, and Min 20-500mA 100-240VAC .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K8AK-AW1 100-240VAC K8AK0007M K8AKAW1100240VAC OMRON Single-phase Current, Max, and Min 20-500mA 100-240VAC ..

K8AK-AW1 100-240VAC

K8AK0007M

K8AKAW1100240VAC

OMRON

1 Pcs.

Single-phase Current, Max, and Min 20-500mA 100-240VAC 2 SPDT Monitoring relay 22.5mm wide, Single phase over or under current 2 to 500mA AC or DC, Two SPDT, 100-240 VAC

Automation > Current monitoring relay
K8AK

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Single-phase current relay, window type

These single-phase current relays monitor over- and undercurrents. Manual resetting and automatic resetting are supported by one relay. The start-up lock and operating time can be set separately. The relay warning status is easily monitored with the LED indicator.

  • Single-phase current window relay
  • In 22.5 mm wide industrial housing
  • Under and over control
  • Supply voltages: 24 VAC/DC, 100 to 240 VAC
  • Easy wiring with ferrules

Ordering information

Measuring current

Supply voltage

Order code

2 to 20 mA AC/DC,
10 to 100 mA AC/DC,
50 to 500 mA AC/DC

24 VAC/DC

K8AK-AW1 24 VAC/DC

100 to 240 VAC

K8AK-AW1 100-240 VAC

0.1 to 1 A AC/DC,
0.5 to 5 A AC/DC

24 VAC/DC

K8AK-AW2 24 VAC/DC

100 to 240 VAC

K8AK-AW2 100-240 VAC

10 to 100 A AC,
20 to 200 A AC

24 VAC/DC

K8AK-AW3 24 VAC/DC

100 to 240 VAC

K8AK-AW3 100-240 VAC

Accessories

Current transformer

Input range

Applicable relay

Order code


10 to 100 A AC, 20 to 200 A AC

K8AK-AW3

K8AC-CT200L

Note:The K8AK-AW3 is designed to be used in combination with the K8AC-CT200L (direct input not possible)

Specifications

Ambient operating temperature

-20 to 60°C (with no condensation or icing)

Storage temperature

-25 to 65°C (with no condensation or icing)

Operating voltage range

85% to 110% of rated operating voltage

Rated power supply frequency

50/60 Hz±5 Hz (AC power supply)

Output relays
(1 × SPDT, normally closed operation)

Resistive load

5 A at 250 VAC or at 30 VDC

Maximum contact voltage

250 VAC or 30 VDC

Maximum contact current

5 A

Maximum switching capacity

1,250 VA, 150 W

Mechanical life

10,000,000 operations

Electrical life

50,000 operations at 5 A, 250 VAC or 30 VDC

Degree of protection

Terminal section: IP20

Case material

PC and ABS

Weight

Approx. 150 g

Operating power

Isolated power supply

2.0 VA/1.1 W max. at 24 VAC/DC, 4.6 VA max. at 100 to 240 VAC

Operate (SV)

Operating value setting range

10% to 100% of maximum measuring current

Operating value

100% operation at set value

Reset (HYS.)

Hysteresis

5% of operating value (fixed)

Resetting method

Manual reset/automatic reset (switchable)
Manual reset: Turn OFF operating power for 1 s or longer

Operating time (T)

0.1 to 30 s

Operating power ON lock (LOCK)

0 to 30 s (The startup lock timer starts when the input has reached approximately 30% or more of the set value.)

Note: Enabled only for overcurrent operation

Repeat error

Operating value

±0.5% full scale (at 25°C and 65% humidity, rated power supply voltage, DC or 50/60 Hz sine wave input)

Operating time

±50 ms (at 25°C and 65% humidity, rated power supply voltage)

Input frequency range

K8AK-AW1/-AW2

DC input or AC input (45 to 65 Hz)

K8AK-AW3

AC input (45 to 65 Hz)

Overload capacity

K8AK-AW1/-AW2

Continuous input at 120% of maximum input, 1 s at 150%

K8AK-AW3

Continuous input at 120%, 30 s at 200%, and 1 s at 600% with an OMRON CT (K8AC-CT200L)

Indicators

Power (PWR): Green LED, relay output (RY): Yellow LED, alarm outputs (ALM): Red LED

Applicable standards

Conforming standards

EN 60947-5-1
Installation environment (pollution level 2, installation category III)

EMC

EN 60947-5-1

Safety standards

UL 508 (Recognition), Korean Radio Waves Act (Act 10564), CSA and CCC

Size in mm (H × W × D)

90 × 22.5 × 100

ETIM for 378164 Relays (EC001440)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
Voltage type (supply voltage) (EF002991) AC/DC
Three-phase under current possible (EF003406) No
Function DC-current hysteresis (EF003411) Yes
Single-phase under current possible (EF003405) Yes
External power supply required (EF003292) Yes
Contains function DC-voltage overcurrent (EF003410) No
With detachable clamps (EF003340) No
External current transformer (EF001923) No
Single-phase overcurrent possible (EF003407) Yes
Three-phase overcurrent possible (EF003408) No
Contains function DC-voltage under current (EF003409) No
Single-phase hysteresis possible (EF003394) Yes
Three-phase hysteresis possible (EF003395) No
Number of contacts as change-over contact (EF008257) 2
Number of contacts as normally open contact (EF008256) 0
Min. adjustable delay-on energization time (EF008190) 0.1 s
Max. permitted delay-on energization time (EF008189) 30 s
Min. adjustable off-delay time (EF008192) 0.1 s
Width (EF000008) 22.5 mm
Number of contacts as normally closed contact (EF008255) 0
Height (EF000040) 90 mm
Rated switch current (EF006706) 5 A
Max. permitted off-delay time (EF008191) 30 s
Depth (EF000049) 100 mm
Supply voltage AC 50 Hz (EF007532) 100 V
Current measuring range (EF000417) 0.002 A
Supply voltage AC 60 Hz (EF007533) 100 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
