> OMRON > Monitoring Relays > K8AK > K8AK0006B

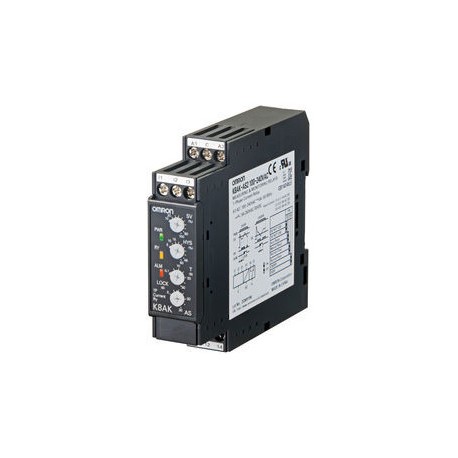

OMRON K8AK-AS3 24VAC/DC K8AK-AS3 24VAC/DC K8AK0006B K8AKAS324VACDC OMRON Single phase Current Max or Min 10-200A 24VAC/DC 1 SPDT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K8AK-AS3 24VAC/DC K8AK0006B K8AKAS324VACDC OMRON Single phase Current Max or Min 10-200A 24VAC/DC 1 SPDT

K8AK-AS3 24VAC/DC

K8AK0006B

K8AKAS324VACDC

OMRON

1 Pcs.

Single phase Current Max or Min 10-200A 24VAC/DC 1 SPDT Monitoring relay 22.5mm wide, Single phase over or under current 10 to 200A AC (External CT required), One SPDT,24VAC/DC

Automation > Current monitoring relay
K8AK

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

FunctionsCurrent
Installation typeDIN Rail
TerminalScrew
Size22.5 mm
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Output typeRelay
Contact descriptionSPDT
Body colorBlack
External current transformer

ETIM for 378163 Relays (EC001440)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
Voltage type (supply voltage) (EF002991) AC
Three-phase under current possible (EF003406) No
Function DC-current hysteresis (EF003411) Yes
Single-phase under current possible (EF003405) Yes
External power supply required (EF003292) Yes
Contains function DC-voltage overcurrent (EF003410) No
With detachable clamps (EF003340) No
External current transformer (EF001923) Yes
Single-phase overcurrent possible (EF003407) Yes
Three-phase overcurrent possible (EF003408) No
Contains function DC-voltage under current (EF003409) No
Single-phase hysteresis possible (EF003394) Yes
Three-phase hysteresis possible (EF003395) No
Number of contacts as change-over contact (EF008257) 1
Number of contacts as normally open contact (EF008256) 0
Min. adjustable delay-on energization time (EF008190) 0.1 s
Max. permitted delay-on energization time (EF008189) 30 s
Min. adjustable off-delay time (EF008192) 0.1 s
Width (EF000008) 22.5 mm
Number of contacts as normally closed contact (EF008255) 0
Height (EF000040) 90 mm
Rated switch current (EF006706) 5 A
Max. permitted off-delay time (EF008191) 30 s
Depth (EF000049) 100 mm
Supply voltage AC 50 Hz (EF007532) 20.4 V
Current measuring range (EF000417) 0 A
Supply voltage AC 60 Hz (EF007533) 20.4 V
Supply voltage DC (EF007534) 20.4 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
