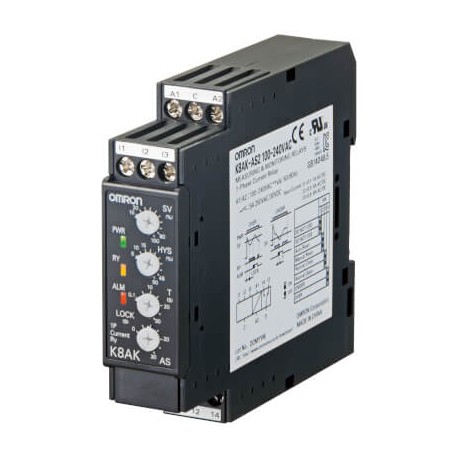

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
K8AK-AS1 24VAC/DC K8AK0002M K8AKAS124VACDC OMRON Single phase Current Max or Min 20-500mA 24VAC/DC 1 SPDT
K8AK-AS1 24VAC/DC
K8AK0002M
K8AKAS124VACDC
OMRON
1 Pcs.
Single phase Current Max or Min 20-500mA 24VAC/DC 1 SPDT
Monitoring relay 22.5mm wide, Single phase over or under current 2 to 500mA AC or DC, One SPDT, 24VAC/DC
Automation > Current monitoring relay
K8AK
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Functions | Current |
| Installation type | DIN rail |
| Terminal type | Screw |
| Size | 22.5 mm |
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 20.4-26.4 V |
| Output type | Relay |
| Contact description | SPDT |
| Body color | Black |
| External current transformer |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Three-phase under current possible (EF003406) | No |
| Function DC-current hysteresis (EF003411) | Yes |
| Single-phase under current possible (EF003405) | Yes |
| External power supply required (EF003292) | Yes |
| Contains function DC-voltage overcurrent (EF003410) | No |
| With detachable clamps (EF003340) | No |
| External current transformer (EF001923) | No |
| Single-phase overcurrent possible (EF003407) | Yes |
| Three-phase overcurrent possible (EF003408) | No |
| Contains function DC-voltage under current (EF003409) | No |
| Single-phase hysteresis possible (EF003394) | Yes |
| Three-phase hysteresis possible (EF003395) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Min. adjustable delay-on energization time (EF008190) | 0.1 s |
| Max. permitted delay-on energization time (EF008189) | 30 s |
| Min. adjustable off-delay time (EF008192) | 0.1 s |
| Width (EF000008) | 22.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 90 mm |
| Rated switch current (EF006706) | 5 A |
| Max. permitted off-delay time (EF008191) | 30 s |
| Depth (EF000049) | 100 mm |
| Supply voltage AC 50 Hz (EF007532) | 20.4 V |
| Current measuring range (EF000417) | 0 A |
| Supply voltage AC 60 Hz (EF007533) | 20.4 V |
| Supply voltage DC (EF007534) | 20.4 V |
