View larger
Images are for illustrative purposes only. Please refer to data sheet for details

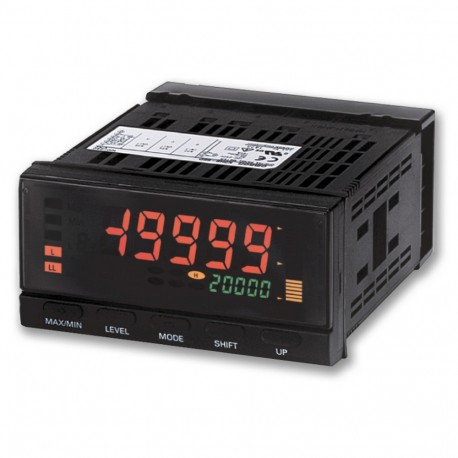

K3HB-XAA 24VAC/VDC K3HB2008D K3HBXAA24VACVDC OMRON Analog current Input Vac
K3HB-XAA 24VAC/VDC
K3HB2008D
K3HBXAA24VACVDC
OMRON
1 Pcs.
Analog current Input Vac
Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, AC current input 0-19.99
Automation > Multifunction measuring instrument
K3HB
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Position meter indication for easy monitoring
- Optional DeviceNet, RS-232C, RS-485
- Double display, with 5 digits, in two colours
- Dimensions: H 48 x W 96 x D 100mm
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP), front side (EF003118) | Other |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Display (EF000360) | LCD |
| Pulse counter (EF006559) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Effective power measurement device (EF006561) | No |
| Ampere meter (EF006555) | Yes |
| With rotational speed meter (EF006557) | No |
| Reactive power meter (EF006556) | No |
| With audit logging (audit log) (EF015391) | No |
| Supporting protocol for OPC UA PubSub (EF015390) | No |
| Frequency meter (EF006558) | No |
| Web server with HTTPS transfer protocol (EF015395) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Remote display (EF016138) | No |
| Voltmeter (EF006560) | Yes |
| Number of digital outputs (EF001993) | 0 |
| Number of Ethernet connections (EF004661) | 0 |
| Width (EF000008) | 96 mm |
| Height (EF000040) | 48 mm |
| Depth (EF000049) | 112 mm |
| Supply voltage AC 50 Hz (EF007532) | 20.4 V |
| Supply voltage AC 60 Hz (EF007533) | 20.4 V |
| Supply voltage DC (EF007534) | 20.4 V |
