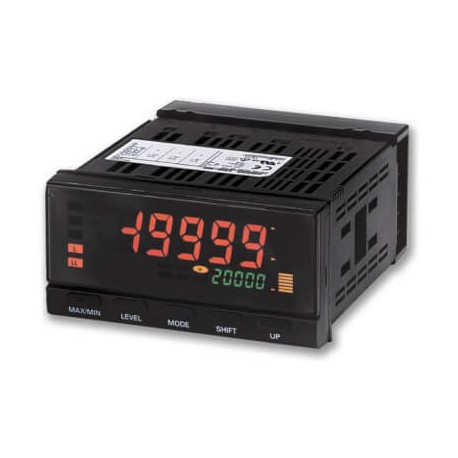

OMRON K3HB-HTA 24VAC/VDC K3HB-HTA 24VAC/VDC K3HB4002F K3HBHTA24VACVDC OMRON Temperature View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K3HB-HTA 24VAC/VDC K3HB4002F K3HBHTA24VACVDC OMRON Temperature

K3HB-HTA 24VAC/VDC

K3HB4002F

K3HBHTA24VACVDC

OMRON

1 Pcs.

Temperature Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, Temperature sensor inputS , PT100,K, J, T, E, L, U, N, R, S, B, W, 24 VAC/VDC supply

Automation > Multifunction measuring instrument
K3HB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A temperature-focused process indicator, the Omron K3HB-HTA 24VAC/VDC accepts a wide range of thermocouple and RTD inputs for thermal monitoring. Temperature meters are utilized across industrial ovens, HVAC systems, and manufacturing lines to maintain precise thermal thresholds.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: Temperature
  • Input range: -200° to 2300° C
  • Size: 1/8 DIN (96 x 48 mm)
  • Number of digits: 5
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Accuracy: +/- 0.2% full scale
  • Sample rate: 20 ms
  • Features: Colour change display
  • Product Width (unpacked): 96 mm
  • Product Height (unpacked): 48 mm
  • Product Depth (unpacked): 95 mm
  • Temperature input type: B, C (WRe5-26), E, J, K, L, N, Pt100, R, S, T, U

More info

▲

Specifications

TypeTemperature
Input range-200° to 2300° C
Size1/8 DIN (96 x 48 mm)
Number of digits5
Output typeNone
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Accuracy+/- 0.2% full scale
Sample rate20 ms
Communication port(s)None
FeaturesColour change display
Product Width (unpacked)96 mm
Product Height (unpacked)48 mm
Product Depth (unpacked)95 mm
Temperature input typeB, C (WRe5-26), E, J, K, L, N, Pt100, R, S, T, U

Accessories

K33-CPAoption board (Slot B), not compatible with K3N models, 1 relay (PASS) SPDT and 12 VDC 80mA sensor power supply
K33-L2Aoption board (Slot B), not compatible with K3N models, Linear DC(0)1-5V or 0 to 10V Output and 12 VDC 80mA sensor power supply
K34-C1option board (Slot C), not compatible with K3N models, 2 relays (High/Low) SPDT for each relay
K35-1option board (Slot D), not compatible with K3N models, NPN open collecor event input card 5 points M3 terminal block
