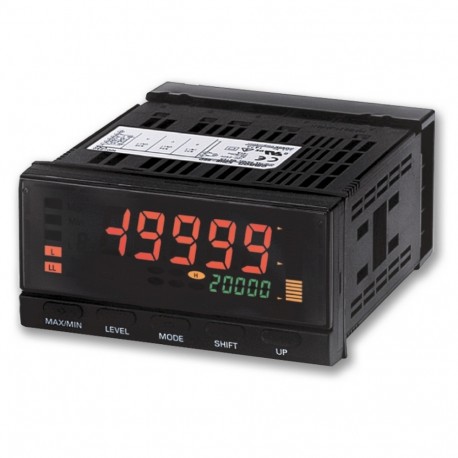

OMRON K3HB-CNB 24VAC/VDC K3HB-CNB 24VAC/VDC K3HB7002B K3HBCNB24VACVDC OMRON Count reversible NPN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K3HB-CNB 24VAC/VDC K3HB7002B K3HBCNB24VACVDC OMRON Count reversible NPN

K3HB-CNB 24VAC/VDC

K3HB7002B

K3HBCNB24VACVDC

OMRON

1 Pcs.

Count reversible NPN Reversible NPN connection Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, Up/Down counting pulse,

Automation > Multifunction measuring instrument
K3HB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron count reversible meter (K3HB-CNB 24VAC/VDC) serves as a digital counter used in production lines to track parts, rotations, or batch quantities with high accuracy. These specialized process meters accept digital inputs from sensors and provide clear visual counts to factory floor operators.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (supply voltage) (EF002991): AC/DC
  • Display (EF000360): LCD
  • Pulse counter (EF006559): Yes
  • Supporting protocol for PROFIBUS (EF003052): No
  • Effective power measurement device (EF006561): No
  • Ampere meter (EF006555): No
  • With rotational speed meter (EF006557): No
  • Reactive power meter (EF006556): No
  • With firmware signature (EF015392): No
  • With audit logging (audit log) (EF015391): No
  • Supporting protocol for OPC UA PubSub (EF015390): No
  • With Role Based Access Control (RBAC) (EF015394): No
  • Frequency meter (EF006558): No
  • Web server with HTTPS transfer protocol (EF015395): No
  • Supporting protocol for PROFINET IO (EF007525): No
  • Remote display (EF016138): No

More info

▲
  • Position meter indication for easy monitoring
  • Optional DeviceNet, RS-232C, RS-485
  • Double display, with 5 digits, in two colours
  • Dimensions: H 48 x W 96 x D 100mm
