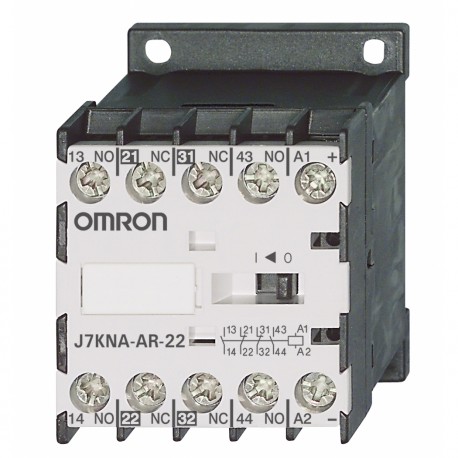

J7KNA-AR-22 48VS J7KA9118E J7KNAAR2248VS OMRON Mini contactor relay, 4-pole (2 NO & 2 NC), 10 A, AC1 (up to ..

J7KNA-AR-22 48VS

J7KA9118E

J7KNAAR2248VS

OMRON

1 Pcs.

Mini contactor relay, 4-pole (2 NO & 2 NC), 10 A, AC1 (up to 690 VAC) 48 VDC + diode

Automation > Contactor relay
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron J7KNA-AR-22 48VS is a 4-pole mini contactor relay designed for efficient signal handling in space-constrained industrial installations. Miniature control relays allow engineers to incorporate multi-contact logic switching without enlarging panel footprints. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • AC: 4
  • 3: 1
  • 2: 2
  • DC solenoid: 4
  • 3: 1
  • 2: 2
  • DC solenoid with diode: 4
  • 3: 1
  • 2: 2
  • 1: 1
  • 0: 2
  • 4: 0
  • 2: 2
  • 0: 4
  • 24: 24
  • 110: 110 to 115

More info

▲
  • Mirror contacts
  • Screw fixing and snap fitting (35mm DIN-rail)
  • Rated current = 10A (I-th)
  • Suitable for electronic devices (DIN 19240)
  • Finger proof (BGV A2)

Specifications & ordering info

Ordering information

Operation

Contacts

Distinctive number according to
DIN EN 50011

Ratings

Thermal rated current

Order code

Coil voltage1,
replace ___ with:

AC15
230 V
A


400 V
A

NO

NC

Ith, A

4-pole, with screw terminals

VAC

VDC

AC

4

0

40 E

3

2

10

J7KNA-AR-40___

24

110

230

-

-

3

1

31 E

3

2

10

J7KNA-AR-31 ___

24

110

230

-

-

2

2

22 E

3

2

10

J7KNA-AR-22 ___

24

110

230

-

-

DC solenoid

4

0

40 E

3

2

10

J7KNA-AR-40 ___

-

-

-

24D

110D

3

1

31 E

3

2

10

J7KNA-AR-31 ___

-

-

-

24D

110D

2

2

22 E

3

2

10

J7KNA-AR-22 ___

-

-

-

24D

110D

DC solenoid with diode

4

0

40 E

3

2

10

J7KNA-AR-40 ____

-

-

-

24VS

-

3

1

31 E

3

2

10

J7KNA-AR-31 ____

-

-

-

24VS

-

2

2

22 E

3

2

10

J7KNA-AR-22 ____

-

-

-

24VS

-

Accessories

Contacts

Ratings

Thermal rated current

Order code

AC15

230 V

A


400 V

A

NO

NC

Ith, A

1

1

3

2

10

J73KN-A-11

0

2

3

2

10

J73KN-A-02

4

0

3

2

10

J73KN-A-40

2

2

3

2

10

J73KN-A-22

0

4

3

2

10

J73KN-A-04

Specifications

Suffix to contactor type
e.g. J7KNA-09-10-24

Voltage marking at the coil for

Rated control voltage Us range for

50 Hz

60 Hz

50 Hz

60 Hz

V

V

min. V

max. V

min. V

max. V

24

24

24

22

24

24

24

110

110 to 115

120 to 125

110

115

120

125

230

220 to 230

240

220

230

240

250


1.Other coil voltages available on request


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
