J7KNA-12-10 240 J7KA9053G J7KNA1210240 OMRON 5.5 KW / 12A / AC3 1NO

J7KNA-12-10 240

J7KA9053G

J7KNA1210240

OMRON

10 Pcs.

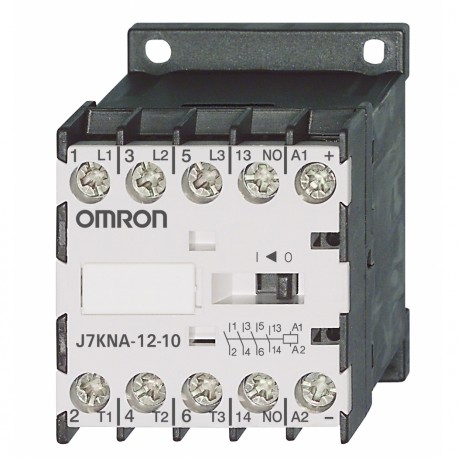

5.5 KW / 12A / AC3 1NO Mini contactor, 3-pole, 5.5 kW; 12 A AC3 (400 VAC) + 1 NO, 240 VAC

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron J7KNA-12-10 240 contactor is a compact electromechanical switching component designed for controlling electric motors and industrial heating elements. These components facilitate remote switching operations within control panels and automation switchboards.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • AC/DC solenoid: 3
  • 0: 1
  • 5.5: 5.5
  • 0: 1
  • 4: 4
  • DC solenoid with diode: 3
  • 0: 1
  • 5.5: 5.5
  • 0: 1
  • AC/DC solenoid: 3 reversing contactors
  • 5.5: 5.5
  • DC solenoid with diode: 4
  • 5.5: 5.5
  • 1: 1
  • 0: 2
  • 2: 2

More info

▲
  • 4kW and 5.5kW versions are available
  • Different coil voltages (AC and DC)
  • Mini and normal-size versions are available
  • The contactors can be mounted with screw fixing and snap fitting on a DIN-rail
  • All components are finger proof

Specifications & ordering info

Ordering information

Operation

Poles

Rating AC2, AC3

Rated current

Auxiliary contact

Overload relay

Size in mm
(H×W×D)

Order code

Coil voltage1,
replace ___ with:

380 V 400 V 415 V kW



500 V kW


660 V 690 V kW

AC3

AC1

400 V
A

690 V
A

NO

NC

VAC

VDC

AC/DC
solenoid

3

4

4

4

9

20

1

0

J7TKN-A

57.5×45×49

J7KNA-09-10___

24

110

230

400

24D

0

1

J7TKN-A

J7KNA-09-01___

24

110

230

400

24D

5.5

5.5

5.5

12

20

1

0

J7TKN-A

J7KNA-12-10___

24

110

230

400

24D

0

1

J7TKN-A

J7KNA-12-01___

24

110

230

400

24D

4

4

4

4

9

20

0

0

J7TKN-A

J7KNA-09-4___

24

110

230

400

24D

DC solenoid with diode

3

4

4

4

9

20

1

0

J7TKN-A

J7KNA-09-10___

-

-

-

-

24VS

0

1

J7TKN-A

J7KNA-09-01___

-

-

-

-

24VS

5.5

5.5

5.5

12

20

1

0

J7TKN-A

J7KNA-12-10___

-

-

-

-

24VS

0

1

J7TKN-A

J7KNA-12-01___

-

-

-

-

24VS

AC/DC
solenoid

3
reversing contactors

4

4

4

9

20

0

1

J7TKN-A

57.5×94.5×50

J7KNA-09-01 R___

24

110

230

400

24D

5.5

5.5

5.5

12

20

0

1

J7TKN-A

J7KNA-12-01 R___

24

110

230

400

24D

DC solenoid with diode

4

4

4

9

20

0

1

J7TKN-A

J7KNA-09-01 R___

-

-

-

-

24VS

5.5

5.5

5.5

12

20

0

1

J7TKN-A

J7KNA-12-01 R___

-

-

-

-

24VS

Accessories

Auxiliary contacts

Contacts

Rated current

Order code

AC15
230 V


400 V


NO


NC

1

1

3 A

2 A

J73KN-AM-11

0

2

3 A

2 A

J73KN-AM-02

2

2

3 A

2 A

J73KN-AM-22

Auxiliary contacts for reversing contactors

1

1

3 A

2 A

J73KN-AM-11V

1

1

3 A

2 A

J73KN-AM-11X

Link modules between MPCB & contactors

For MPCB J7MN-3P/J7MN-3R

J77MN-VKA-3

Insulated wiring system for J7KNA-09-01-R...(D) and J7KNA-12-01-R...(D)

Reversing Starter Connector for Mini Reversing Contactors, mechanical interlocked

J74-WKR-A

Specifications

Suffix to contactor type e.g. J7KNA-09-10-24

Voltage marking
at the coil for

Rated control voltage Us
range for

50 Hz

60 Hz

50 Hz

60 Hz

V

V

min. V

max. V

min. V

max. V

24

24

24

22

24

24

24

110

110 to 115

120 to 125

110

115

120

125

230

220 to 230

240

220

230

240

250

Main contacts

J7KNA-09-___

J7KNA-12-___

Rated insulation voltage Ui

690 VAC

690 VAC

Making capacity Ieff

at Ue = 690 VAC

165 A

165 A

Breaking
capacity Ieff
cosφ = 0,65

400 VAC

100 A

100 A

500 VAC

90 A

90 A

690 VAC

80 A

80 A

Mechanical life AC operated

5 × 106

5 × 106

DC operated

15 × 106

15 × 106

Short time current

10 s current

96 A

120 A

1.Other coil voltages available on request


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
