OMRON J7KNA-09-10 48D J7KNA-09-10 48D J7KA9021R J7KNA091048D OMRON Mini contactor, 3-pole, 4 kW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KNA-09-10 48D J7KA9021R J7KNA091048D OMRON Mini contactor, 3-pole, 4 kW

J7KNA-09-10 48D

J7KA9021R

J7KNA091048D

OMRON

1 Pcs.

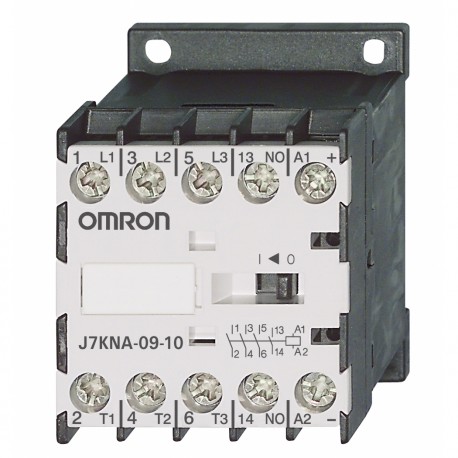

Mini contactor, 3-pole, 4 kW Mini contactor, 3-pole, 4 kW; 9 A AC3 (400 VAC) + 1 NO, 48 VDC

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron J7KNA-09-10 48D mini contactor provides space-efficient switching capabilities for low-horsepower motor loads and control circuit automation. These robust units ensure dependable operation in confined electrical enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • AC/DC solenoid: 3
  • 0: 1
  • 5.5: 5.5
  • 0: 1
  • 4: 4
  • DC solenoid with diode: 3
  • 0: 1
  • 5.5: 5.5
  • 0: 1
  • AC/DC solenoid: 3 reversing contactors
  • 5.5: 5.5
  • DC solenoid with diode: 4
  • 5.5: 5.5
  • 1: 1
  • 0: 2
  • 2: 2

More info

▲
  • 4kW and 5.5kW versions are available
  • Different coil voltages (AC and DC)
  • Mini and normal-size versions are available
  • The contactors can be mounted with screw fixing and snap fitting on a DIN-rail
  • All components are finger proof

Specifications & ordering info

Ordering information

Operation

Poles

Rating AC2, AC3

Rated current

Auxiliary contact

Overload relay

Size in mm
(H×W×D)

Order code

Coil voltage1,
replace ___ with:

380 V 400 V 415 V kW



500 V kW


660 V 690 V kW

AC3

AC1

400 V
A

690 V
A

NO

NC

VAC

VDC

AC/DC
solenoid

3

4

4

4

9

20

1

0

J7TKN-A

57.5×45×49

J7KNA-09-10___

24

110

230

400

24D

0

1

J7TKN-A

J7KNA-09-01___

24

110

230

400

24D

5.5

5.5

5.5

12

20

1

0

J7TKN-A

J7KNA-12-10___

24

110

230

400

24D

0

1

J7TKN-A

J7KNA-12-01___

24

110

230

400

24D

4

4

4

4

9

20

0

0

J7TKN-A

J7KNA-09-4___

24

110

230

400

24D

DC solenoid with diode

3

4

4

4

9

20

1

0

J7TKN-A

J7KNA-09-10___

-

-

-

-

24VS

0

1

J7TKN-A

J7KNA-09-01___

-

-

-

-

24VS

5.5

5.5

5.5

12

20

1

0

J7TKN-A

J7KNA-12-10___

-

-

-

-

24VS

0

1

J7TKN-A

J7KNA-12-01___

-

-

-

-

24VS

AC/DC
solenoid

3
reversing contactors

4

4

4

9

20

0

1

J7TKN-A

57.5×94.5×50

J7KNA-09-01 R___

24

110

230

400

24D

5.5

5.5

5.5

12

20

0

1

J7TKN-A

J7KNA-12-01 R___

24

110

230

400

24D

DC solenoid with diode

4

4

4

9

20

0

1

J7TKN-A

J7KNA-09-01 R___

-

-

-

-

24VS

5.5

5.5

5.5

12

20

0

1

J7TKN-A

J7KNA-12-01 R___

-

-

-

-

24VS

Accessories

Auxiliary contacts

Contacts

Rated current

Order code

AC15
230 V


400 V


NO


NC

1

1

3 A

2 A

J73KN-AM-11

0

2

3 A

2 A

J73KN-AM-02

2

2

3 A

2 A

J73KN-AM-22

Auxiliary contacts for reversing contactors

1

1

3 A

2 A

J73KN-AM-11V

1

1

3 A

2 A

J73KN-AM-11X

Link modules between MPCB & contactors

For MPCB J7MN-3P/J7MN-3R

J77MN-VKA-3

Insulated wiring system for J7KNA-09-01-R...(D) and J7KNA-12-01-R...(D)

Reversing Starter Connector for Mini Reversing Contactors, mechanical interlocked

J74-WKR-A

Specifications

Suffix to contactor type e.g. J7KNA-09-10-24

Voltage marking
at the coil for

Rated control voltage Us
range for

50 Hz

60 Hz

50 Hz

60 Hz

V

V

min. V

max. V

min. V

max. V

24

24

24

22

24

24

24

110

110 to 115

120 to 125

110

115

120

125

230

220 to 230

240

220

230

240

250

Main contacts

J7KNA-09-___

J7KNA-12-___

Rated insulation voltage Ui

690 VAC

690 VAC

Making capacity Ieff

at Ue = 690 VAC

165 A

165 A

Breaking
capacity Ieff
cosφ = 0,65

400 VAC

100 A

100 A

500 VAC

90 A

90 A

690 VAC

80 A

80 A

Mechanical life AC operated

5 × 106

5 × 106

DC operated

15 × 106

15 × 106

Short time current

10 s current

96 A

120 A

1.Other coil voltages available on request


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
