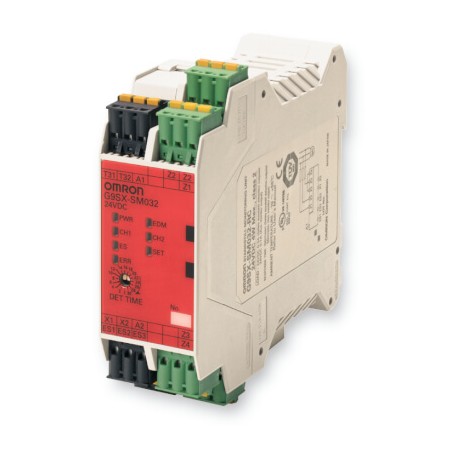

Module Sec. Monitoring stop 3Salidas 2AUX 24vdc Standstill monitoring unit with screw terminals

Automation > Device for monitoring of safety-related circuits
G9SX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron stop monitoring module G9SX-SM032-RT (part number G9SX6026M) delivers advanced safety monitoring for machinery by verifying motor standstill conditions. Such devices are implemented in complex automation cells to prevent hazardous restarting until moving parts have completely stopped. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 3 (Semi-conductors): 2 (Semi-conductors)
  • Spring-cage terminals: G9SX-SM032-RC
  • Rated supply voltage: 24 VDC
  • Input voltage: Standstill detection input (Z1-Z2/Z3-Z4) AC 415 Vrms + 10% max.
  • Maximum power supply frequency for AC induction motor: 60 Hz max.
  • Internal impedance: Standstill detection input: approx, 660 k Ω EDM input: approx. 2.8 k Ω
  • Safety standstill detection output: Sourcing output (PNP) Load current: 300 mA DC max.
  • Auxiliary output: Sourcing output (PNP) Load current: 100 mA DC max.
  • Stop category according to IEC 60204 (EF007498): 1
  • Voltage type (operating voltage) (EF005294): DC
  • Performance level according to EN ISO 13849-1 (EF007399): Level e
  • Type of safety according to IEC 61496-1 (EF004105): 4
  • Model (EF000010): Basic device
  • Type of electric connection (EF003961): Screw connection
  • SIL according to IEC 61508 (EF009889): 3
  • Voltage type (supply voltage) (EF002991): DC

More info

▲
Features

Standstill monitoring unit with solid state outputs

Safe Standstill monitoring unit based on Back EMF operation for two- and three phase systems.

  • Ready to use - covering all standard applications without additional setup
  • Easy integration in star- and delta wiring
  • Clear LED diagnosis of all in- and outputs
  • Applicable up to Category 4 acc. EN 954-1

Ordering information

Safety standstill monitoring unit

Safety outputs1

Auxiliary outputs1

Power input

Rated supply voltage

Terminal block type

Order code

Instantaneous

3 (Semi-conductors)

2 (Semi-conductors)

24 VDC

Screw terminals

G9SX-SM032-RT

Spring-cage terminals

G9SX-SM032-RC

Specifications

Ratings of standstill monitoring unit

Power input

Item

G9SX-SM032-_

Rated supply voltage

24 VDC

Inputs

Item

G9SX-SM032-__

Input voltage

Standstill detection input (Z1-Z2/Z3-Z4) AC 415 Vrms + 10% max.

Maximum power supply frequency for AC induction motor

60 Hz max.

Internal impedance

Standstill detection input: approx, 660 kΩ

EDM input: approx. 2.8 kΩ

Outputs

Item

G9SX-SM032-_

Safety standstill detection output

Sourcing output (PNP)

Load current: 300 mA DC max.

Auxiliary output

Sourcing output (PNP)

Load current: 100 mA DC max.

Application example

3-phase motor


3-phase motor with star-delta wiring


1.PNP transistor output


Product Datasheet
