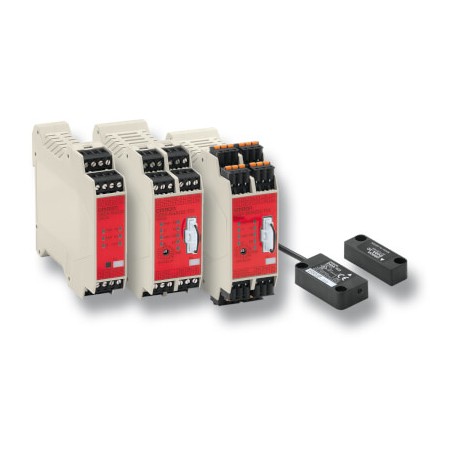

OMRON G9SX-EX401-RC DC24 G9SX-EX401-RC DC24 G9SX6006F G9SXEX401RCDC24,1 OMRON Module expansion 4PST-NO, 22.5 mm 24vdc View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G9SX-EX401-RC DC24 G9SX6006F G9SXEX401RCDC24,1 OMRON Module expansion 4PST-NO, 22.5 mm 24vdc

G9SX-EX401-RC DC24

G9SX6006F

G9SXEX401RCDC24.1

OMRON

1 Pcs.

Module expansion 4PST-NO, 22.5 mm 24vdc 4PST-NO 22.5mm 24Vdc Expansion Module Expansion unit (to be used with advanced unit), 4PST-NO relay outputs (3 A), 1 x NO solid state output (PNP), spring mounted terminals

Automation > Device for monitoring of safety-related circuits
G9SX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron G9SX-EX401-RC DC24 is a safety expansion module designed to add extra contact outputs to main safety control units in automated industrial setups. These expansion blocks scale up the switching capacity of a safety system to accommodate multiple auxiliary interlocking and monitoring circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 3 P channel MOS-FET transistor output: 2 P channel MOS-FET transistor output: 2 P channel MOS-FET transistor output
  • Cage clamp terminals: G9SX-AD322-T15-RC: G9SX-AD322-T15-RC
  • 2 P channel MOS-FET transistor output: 2 P channel MOS-FET transistor output: 2 P channel MOS-FET transistor output
  • Cage clamp terminals: G9SX-AD-322-T150-RC: G9SX-AD-322-T150-RC
  • 0 to 15 sec in 16 steps: 24 VDC: 24 VDC
  • Cage clamp terminals: G9SX-ADA-222-T15-RC: G9SX-ADA-222-T15-RC
  • 0 to 150 sec in 16 steps: 24 VDC: 24 VDC
  • Cage clamp terminals: G9SX-ADA-222-T150-RC: G9SX-ADA-222-T150-RC
  • Cage clamp terminals: G9SX-BC202-RC: G9SX-BC202-RC
  • Cage clamp terminals: G9SX-EX401-RC: G9SX-EX401-RC
  • -: 4 PST-NO (contact): 4 PST-NO (contact)
  • Cage clamp terminals: G9SX-EX041-T-RC: G9SX-EX041-T-RC
  • Rated supply voltage: 20.4 to 26.4 VDC (24 VDC -15% +10%): 20.4 to 26.4 VDC (24 VDC -15% +10%)
  • Safety input: Operating voltage: 20.4 VDC to 26.4 VDC: internal impedance: Approx. 2.8 kΩ
  • Auxiliary output: PNP transistor output Load current: 100 mA max.: PNP transistor output Load current: 100 mA max.
  • Rated load: 250 VAC: 3A/30 VDC, 3A (resistive load)

More info

▲
Features

Flexible safety unit

G9SX-family modules can be connected by a logical “AND” function to implement partial/global stopping of a machine. Solid-state outputs, detailed LED diagnosis and clever feedback signals help to keep maintenance easy. The line-up is completed by expansion units with safe timing functions.

  • Clear and transparent segmentation of safety functions by use of unique "AND" connection
  • Solid-state outputs for long life and relay outputs in extension box available
  • Detailed LED indications enable easy diagnosis
  • Clever feedback signals for easy maintenance
  • Category-4 according to EN954-1 and SIL 3 according to EN 61508

Ordering information

Advanced unit

Safety outputs

Auxiliary outputs

No. of input
channels

Max. OFF-delay time1

Rated voltage

Terminal block type

Order code

Instantaneous

OFF-delayed

3 P channel MOS-FET transistor output

2 P channel MOS-FET transistor output

2 PNP transistor
outputs

1 or 2 channels

0 to 15 sec in
16 steps

24 VDC

Screw terminals

G9SX-AD322-T15-RT

Cage clamp terminals

G9SX-AD322-T15-RC

2 P channel MOS-FET transistor output

2 P channel MOS-FET transistor output

2 PNP transistor
outputs

1 or 2 channels

0 to 150 sec in
16 steps

24 VDC

Screw terminals

G9SX-AD-322-T150-RT

Cage clamp terminals

G9SX-AD-322-T150-RC

0 to 15 sec in
16 steps

24 VDC

Screw terminals

G9SX-ADA-222-T15-RT

Cage clamp terminals

G9SX-ADA-222-T15-RC

0 to 150 sec in
16 steps

24 VDC

Screw terminals

G9SX-ADA-222-T150-RT

Cage clamp terminals

G9SX-ADA-222-T150-RC

Basic unit

Safety outputs

Auxiliary outputs

No. of input
channels

Rated voltage

Terminal block type

Order code

Instantaneous

OFF-delayed

2 P channel MOS FET transistor output

-

2 PNP transistor
output

1 or 2 channels

24 VDC

Screw terminals

G9SX-BC202-RT

Cage clamp terminals

G9SX-BC202-RC

Expansion unit

Safety outputs

Auxiliary outputs

OFF-delay time

Rated voltage

Terminal block type

Order code

Instantaneous

OFF-delayed

4 PST-NO (contact)

-

2 (solid state) PNP
transistor outputs

-

24 VDC

Screw terminals

G9SX-EX401-RT

Cage clamp terminals

G9SX-EX401-RC

-

4 PST-NO (contact)

Synchronized with
G9S-X-AD - unit

Screw terminals

G9SX-EX041-T-RT

Cage clamp terminals

G9SX-EX041-T-RC

Specifications

Power input

Item

G9SX-AD_

G9SX-BC202-_

G9SX-EX-_

Rated supply voltage

20.4 to 26.4 VDC (24 VDC -15% +10%)

Inputs

Item

G9SX-AD_

G9SX-BC202-_

Safety input

Operating voltage: 20.4 VDC to 26.4 VDC,
internal impedance: Approx. 2.8 kΩ

Feedback/reset input

Outputs

Item

G9SX-AD_

G9SX-BC202-_

Instantaneous safety output
OFF-delayed safety output

P channel MOS FET transistor output

Load current:Using 2 outputs or less: 1 A DC max.

Using 3 outputs or more: 0.8 A DC max.

P channel MOS FET transistor output

Load current:Using 1 output: 1 A DC max.

Using 2 outputs: 0.8 A DC max.

Auxiliary output

PNP transistor output
Load current: 100 mA max.

Expansion unit

Item

G9SX-EX-_

Rated load

250 VAC, 3A/30 VDC, 3A (resistive load)

Rated carry current

3 A

Maximum switching voltage

250 VAC, 125 VDC

Characteristics

Item

G9SX-AD_

G9SX-BC202-_

G9SX-EX-_

Operating time (OFF to ON state)

50 ms max. (Safety input: ON)

100 ms max. (Logical AND connection input: ON)

50 ms max. (Safety input: ON)

30 ms max.

Response time (ON to OFF state)

15 ms max.

10 ms max.

Durability

Electrical

-

100,000 cycles min.

Mechanical

-

5,000,000 cycles min.

Ambient temperature

-10°C +55°C (with no icing or condensation)


1.The OFF-delay time can be set in 16 steps as follows: T15: 0/0.2/0.3/0.4/0.5/0.6/0.7/1/1.5/2/3/4/5/7/10/15 s, T150: 0/10/20/30/40/50/60/70/80/90/100/110/120/130/140/150 s.
