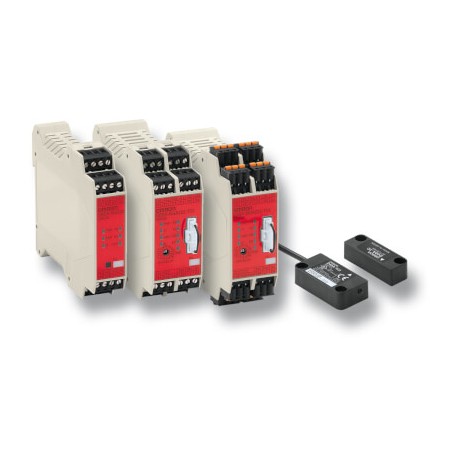

G9SX-AD322-T150-RT DC24 G9SX6014G G9SXAD322T150RTDC24,1 OMRON Module Sec. 5 Outputs(2 temp. 150s)/2 Entries ..
G9SX-AD322-T150-RT DC24
G9SX6014G
G9SXAD322T150RTDC24.1
OMRON
1 Pcs.
Automation > Device for monitoring of safety-related circuits
G9SX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron G9SX-AD322-T150-RT DC24 is a safety module utilized to monitor critical safety devices and interrupt control circuits when hazards are detected. These units integrate into machine safety architectures to ensure reliable stopping functions across manufacturing plants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 3 P channel MOS-FET transistor output: 2 P channel MOS-FET transistor output
- Cage clamp terminals: G9SX-AD322-T15-RC
- 2 P channel MOS-FET transistor output: 2 P channel MOS-FET transistor output
- Cage clamp terminals: G9SX-AD-322-T150-RC
- 0 to 15 sec in 16 steps: 24 VDC
- Cage clamp terminals: G9SX-ADA-222-T15-RC
- 0 to 150 sec in 16 steps: 24 VDC
- Cage clamp terminals: G9SX-ADA-222-T150-RC
- Cage clamp terminals: G9SX-BC202-RC
- Cage clamp terminals: G9SX-EX401-RC
- -: 4 PST-NO (contact)
- Cage clamp terminals: G9SX-EX041-T-RC
- Rated supply voltage: 20.4 to 26.4 VDC (24 VDC -15% +10%)
- Safety input: Operating voltage: 20.4 VDC to 26.4 VDC, internal impedance: Approx. 2.8 kΩ
- Auxiliary output: PNP transistor output Load current: 100 mA max.
- Rated load: 250 VAC, 3A/30 VDC, 3A (resistive load)
More info
▲Flexible safety unit
G9SX-family modules can be connected by a logical “AND” function to implement partial/global stopping of a machine. Solid-state outputs, detailed LED diagnosis and clever feedback signals help to keep maintenance easy. The line-up is completed by expansion units with safe timing functions.
- Clear and transparent segmentation of safety functions by use of unique "AND" connection
- Solid-state outputs for long life and relay outputs in extension box available
- Detailed LED indications enable easy diagnosis
- Clever feedback signals for easy maintenance
- Category-4 according to EN954-1 and SIL 3 according to EN 61508
Ordering information
Advanced unit
Max. OFF-delay time1 | |||||||
|---|---|---|---|---|---|---|---|
Basic unit
Expansion unit
Specifications
Power input
Inputs
Operating voltage: 20.4 VDC to 26.4 VDC, | ||
Outputs
| P channel MOS FET transistor output | P channel MOS FET transistor output | |
