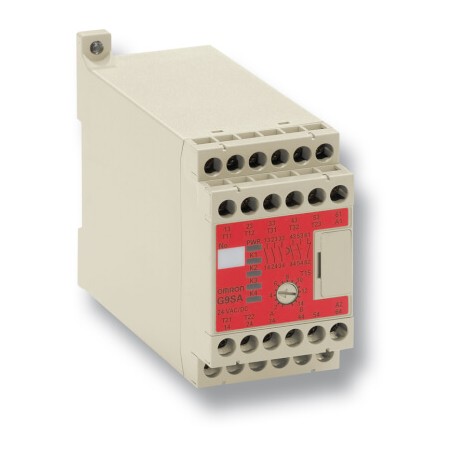

OMRON G9SA-TH301 AC100-240 G9SA-TH301 AC100-240 G9SA6017D G9SATH301AC100240,1 OMRON Security module Bimanual 3PST-NA SPST-NC 100-240vac View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G9SA-TH301 AC100-240 G9SA6017D G9SATH301AC100240,1 OMRON Security module Bimanual 3PST-NA SPST-NC 100-240vac

G9SA-TH301 AC100-240

G9SA6017D

G9SATH301AC100240.1

OMRON

1 Pcs.

Security module Bimanual 3PST-NA SPST-NC 100-240vac 3PST-NA SPST-NC Bimanual Safety Module 100-240Vac Two-hand controller, 3PST-NO (category 4), 5 A, SPST-NC aux, 2 channel input

Automation > Device for monitoring of safety-related circuits
G9SA/B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Expandable safety relay unit

G9SA-family offers a complete line-up of compact and expandable safety relay units. Modules with safe OFF-delay timing are available as well as a two-hand controller. Simple multiplication of safety contacts is possible by using the connection on the front.

  • 45mm-wide housing, expansion units are 17.5mm wide
  • Safe OFF-delay timer
  • Simple expansion connection
  • Certification up to PLe according to EN ISO 13849-1 depending on the application

Ordering information

Emergency-stop units

Main contacts

Auxiliary contact

Number of input channels

Rated voltage

Order code

3PST-NO

SPST-NC

1 channel or 2 channels possible

24 VAC/VDC

G9SA-301

100 to 240 VAC

5PST-NO

SPST-NC

1 channel or 2 channels possible

24 VAC/VDC

G9SA-501

100 to 240 VAC

Emergency-stop OFF-delay units

Main contacts

OFF-delay contacts

Auxiliary

contact

Number of

input channels

OFF-delay time

Rated voltage

Order code

3PST-NO

DPST-NO

SPST-NC

1 channel or
2 channels
possible

7.5 s

24 VAC/VDC

G9SA-321-T075

100 to 240 VAC

15 s

24 VAC/VDC

G9SA-321-T15

100 to 240 VAC

30 s

24 VAC/VDC

G9SA-321-T30

100 to 240 VAC

Two-hand controller

Main contacts

Auxiliary contact

Number of input channels

Rated voltage

Order code

3PST-NO

SPST-NC

2 channels

24 VAC/VDC

G9SA-TH301

100 to 240 VAC

Expansion unit

The expansion unit connects to a G9SA-301, G9SA-501, G9SA-321, or G9SA-TH301.

Main contacts

Auxiliary contact

Category

Order code

3PST-NO

SPST-NC

4

G9SA-EX301

Expansion units with OFF-delay outputs

The expansion unit connects to a G9SA-301, G9SA-501, G9SA-321, or G9SA-TH301.

Main contact form

Auxiliary contact

OFF-delay time

Order code

3PST-NO

SPST-NC

7.5 s

G9SA-EX031-T075

15 s

G9SA-EX031-T15

30 s

G9SA-EX031-T30

Specifications

Power input

Item

G9SA-301/TH301 / G9SA-501 / G9SA-321-T_

Power supply voltage

24 VAC/VDC: 24 VAC, 50/60 Hz, or 24 VDC
100 to 240 VAC:100 to 240 VAC, 50/60 Hz

Operating voltage range

85 to 110% of rated power supply voltage

Inputs

Item

G9SA-301/321-T_/TH301

G9SA-501

Input current

40 mA max.

60 mA max.

Contacts

Item

G9SA-301/501/321-T_/TH301/EX301/EX031-T_

Resistive load (cosφ= 1)

Rated load

250 VAC, 5 A

Rated carry current

5 A

Characteristics

Item

G9SA-301/TH301 / G9SA-501/321-T_ / G9SA-EX301/EX031-T_

Operating time

30 ms max. (not including bounce time)

Response time1

10 ms max. (not including bounce time)

Durability

Mechanical

5,000,000 operations min. (at approx. 7,200 operations/hr)

Electrical

100,000 operations min. (at approx. 1,800 operations/hr)

Minimum permissible load
(reference value)

5 VDC, 1 mA

Ambient temperature

Operating:-25 to 55°C (with no icing or condensation)
Storage:-25 to 85°C (with no icing or condensation)

1.The response time is the time it takes for the main contact to open after the input is turned OFF.


ETIM for 347778 Relays (EC001449)
Feature Name Feature Value
Stop category according to IEC 60204 (EF007498) 0
Performance level according to EN ISO 13849-1 (EF007399) Level e
Model (EF000010) Basic device
Evaluation inputs (EF008245) 2-channel
Type of electric connection (EF003961) Screw connection
SIL according to IEC 61508 (EF009889) 4
Voltage type (supply voltage) (EF002991) AC
Suitable for monitoring of proximity switches (EF007267) No
Suitable for monitoring of emergency-stop circuits (EF007268) No
Suitable for monitoring of optoelectronic protection equipment (EF007269) No
With detachable clamps (EF003340) No
Suitable for monitoring of valves (EF007272) No
Suitable for monitoring of tactile sensors (EF007271) Yes
Suitable for monitoring of magnetic switches (EF007266) No
Suitable for monitoring of position switches (EF007270) No
Suitable for rail mounting (EF003972) Yes
Number of outputs, signalling function, undelayed, with contact (EF003348) 1
Number of outputs, safety related, undelayed, semiconductors (EF003346) 0
Number of outputs, safety related, delayed, semiconductors (EF003347) 0
Number of outputs, safety related, delayed, with contact (EF003345) 0
Number of outputs, signalling function, delayed, with contact (EF003349) 0
Width (EF000008) 45 mm
Number of outputs, signalling function, delayed, semiconductors (EF003351) 0
Height (EF000040) 76 mm
Number of outputs, safety related, undelayed, with contact (EF003344) 3
Number of outputs, signalling function, undelayed, semiconductors (EF003350) 0
Depth (EF000049) 111 mm
Supply voltage AC 50 Hz (EF007532) 85 V
Supply voltage AC 60 Hz (EF007533) 85 V
