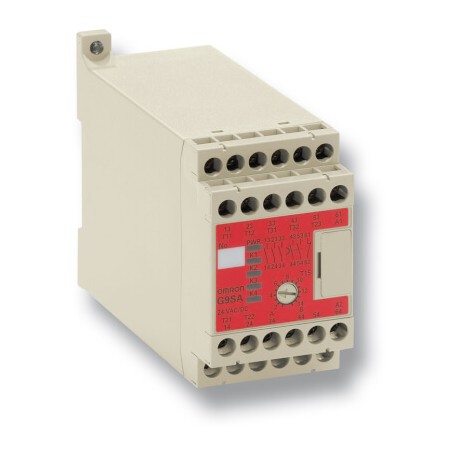

G9SA-EX031-T15 G9SA6009C G9SAEX031T15,1 OMRON Expander module for G9SA 3PST-NA Delay 15sg
G9SA-EX031-T15
G9SA6009C
G9SAEX031T15.1
OMRON
1 Pcs.
Automation > Device for monitoring of safety-related circuits
G9SA/B
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron G9SA-EX031-T15 expander module for G9SA functions as an auxiliary extension unit designed to increase the number of safety contacts available in an established machine safety configuration. These expander modules link directly with primary safety relays to provide synchronized delayed or immediate switching for complex industrial interlocking setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 3PST-NO: SPST-NC: 100 to 240 VAC
- 5PST-NO: SPST-NC: 100 to 240 VAC
- 15 s: 24 VAC/VDC
- 30 s: 24 VAC/VDC
- 3PST-NO: SPST-NC: 15 s: G9SA-EX031-T15
- 30 s: G9SA-EX031-T30
- Power supply voltage: 24 VAC/VDC: 24 VAC, 50/60 Hz, or 24 VDC 100 to 240 VAC:100 to 240 VAC, 50/60 Hz
- Operating voltage range: 85 to 110% of rated power supply voltage
- Input current: 40 mA max.
- Rated load: 250 VAC, 5 A
- Rated carry current: 5 A
- Operating time: 30 ms max. (not including bounce time)
- Response time 1: 10 ms max. (not including bounce time)
- Durability: Mechanical
- Electrical: 100,000 operations min. (at approx. 1,800 operations/hr)
More info
▲Expandable safety relay unit
G9SA-family offers a complete line-up of compact and expandable safety relay units. Modules with safe OFF-delay timing are available as well as a two-hand controller. Simple multiplication of safety contacts is possible by using the connection on the front.
- 45mm-wide housing, expansion units are 17.5mm wide
- Safe OFF-delay timer
- Simple expansion connection
- Certification up to PLe according to EN ISO 13849-1 depending on the application
Ordering information
Emergency-stop units
Emergency-stop OFF-delay units
Two-hand controller
Expansion unit
The expansion unit connects to a G9SA-301, G9SA-501, G9SA-321, or G9SA-TH301.
Expansion units with OFF-delay outputs
The expansion unit connects to a G9SA-301, G9SA-501, G9SA-321, or G9SA-TH301.
Specifications
Power input
24 VAC/VDC: 24 VAC, 50/60 Hz, or 24 VDC | |||
Inputs
Contacts
Characteristics
Response time1 | ||||
Operating:-25 to 55°C (with no icing or condensation) | ||||
