View larger
Images are for illustrative purposes only. Please refer to data sheet for details

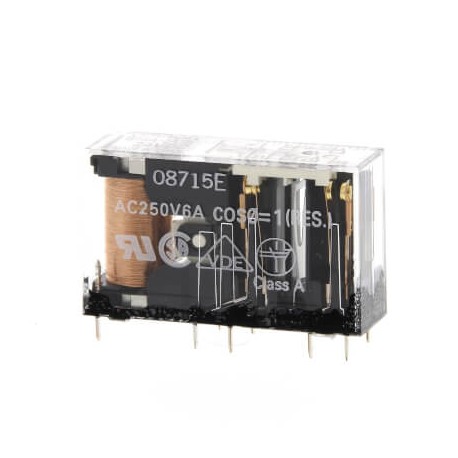

G7SA-2A2B 12VDC G7SA0007H G7SA2A2BDC12 OMRON Relay Safety DPST-NA DPST-NC 4-pole 6A 12vdc
G7SA-2A2B 12VDC
G7SA0007H
G7SA2A2BDC12
OMRON
20 Pcs.
Relay Safety DPST-NA DPST-NC 4-pole 6A 12vdc
Safety relay, plug-in, DPST-NO, DPST-NC, 6 A, forcibly-guided contacts, 12 VDC
Automation > Switching relay
G7S
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Number of contacts, normally-open2Number of contacts, normally-closed2Coil voltage12 VRated carry current6 AFeaturesTransparent case, With forced-guided contacts
| Feature Name | Feature Value |
|---|---|
| Type of switch contact (EF003358) | Single contact |
| Material of contact insert (EF008521) | Other |
| Degree of protection (IP) (EF005474) | Other |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Material of contact surface (EF004020) | Gold |
| Drive, polarization (EF003355) | Polarity free |
| Voltage type for actuating (EF008242) | DC |
| Type of electric connection (EF003961) | Plug-in connection |
| Material contact (EF007544) | Other |
| Drive, switching attitude (EF003356) | Mono stable |
| With detachable clamps (EF003340) | No |
| Complete with socket (EF003359) | No |
| With LED indication (EF005950) | No |
| With forced-guided contacts (EF003357) | Yes |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Width (EF000008) | 13 mm |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Height (EF000040) | 24 mm |
| Depth (EF000049) | 40 mm |
| Nominal current (EF000001) | 6 A |
| Operating voltage DC (EF008208) | 0 V |
| Rated control supply voltage DC (EF003980) | 9 V |
| Operating voltage AC 50 Hz (EF008206) | 0 V |
| Operating voltage AC 60 Hz (EF008207) | 0 V |
