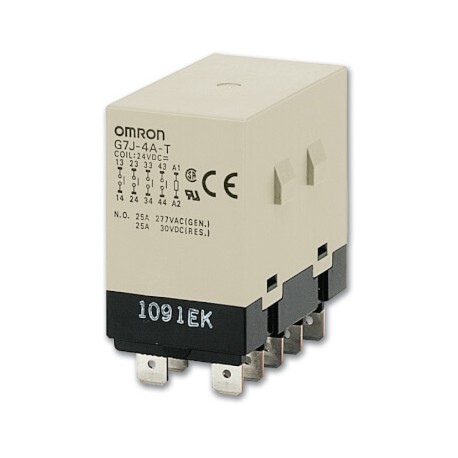

OMRON G7J-3A1B-P 200/240VAC G7J-3A1B-P 200/240VAC G7J 1010E G7J3A1BP200240AC OMRON 3NA + 1NC 25A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G7J-3A1B-P 200/240VAC G7J 1010E G7J3A1BP200240AC OMRON 3NA + 1NC 25A

G7J-3A1B-P 200/240VAC

G7J 1010E

G7J3A1BP200240AC

OMRON

20 Pcs.

3NA + 1NC 25A

Automation > Switching relay
G7 Power

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

A high-capacity multi-pole relay used like a contactor

With a rated load current of 25A due to the miniature hinge for maximum switching power, the G7J can switch both motor loads as well as resistive and inductive loads. G7J has no contact chattering for momentary voltage drops up to 50% of its rated voltage.

  • 4PST-NO, 3PST-NO / SPST-NC or DPST-NO / DPST-NC contact types
  • Quick-connect, PCB or screw terminals
  • 25A rated load
  • Compatible with momentary voltage drops
  • Can be used like a contactor

Ordering information

Contact form

Mounting

Terminal

Order code1
( ___= coil voltage + AC/DC)

Common coil voltages2

PCB

W-bracket mounting

PCB

Quick-connect

Screw

DC

AC

4PST-NO

yes

no

yes

no

no

G7J-4A-P___

12, 24

200/240

no

yes

no

yes

G7J-4A-B___

24

-

yes

no

G7J-4A-T___

12, 24

200/240

3PST-NO/SPST-NC

yes

no

yes

no

G7J-3A1B-P___

24

-

no

yes

no

yes

G7J-3A1B-B___

24

-

DPST-NO/SPST-NC

yes

no

G7J-3A1B-T___

24

200/240

DPST-NO/DPST-NC

yes

no

yes

no

G7J-2A2B-P___

24

-

Accessories

For type

Order code

W-bracket

G7J Screw terminal type

R99-04 for G5F

G7J Quick Connect type

Specifications

Coil ratings

Rated voltage

Must operate voltage

Must release voltage

Max. voltage

Power consumption (approx.)

% of rated voltage

AC

24, 50, 100 to 120, 200 to 240

75% max.

15% min.

110%

1.8 to 2.6 VA

DC

6, 12, 24, 48, 100

10% min.

2.0 W

Contact ratings

Item

4-pole

Resistive load
cosϕ = 1

Inductive load
cosϕ = 0.4

Resistive load

Rated load

NO: 25 A at 220 VAC
(24 A at 230 VAC)

NC: 8 A at 220 VAC
(7.5 A at 230 VAC)

NO: 25 A at
30 VDC

NC: 8 A at
30 VDC

Rated carry current

NO: 25 A (1 A), NC: 8 A (1 A)

Max. switching voltage

250 VAC

125 VDC

Max. switching current

NO: 25 A (1 A), NC: 8 A (1 A)

Mechanical life

1,000,000 operations min.

Electrical life

100,000 operations min.

Note:Values between () indicate bifurcated contact specification.

Technical data

Contact material

Ag alloy

Operating time

50 ms max.

Release time

50 ms max.

Dielectric strength

4,000 VAC

Ambient temperature

Operating: -25 to 60°C (no icing)

1.For other options like bifurcated contacts, please see specifications.

2.Other coil voltages available. Please see specifications.
