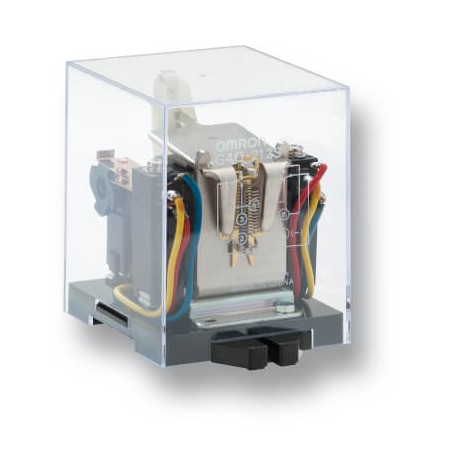

OMRON G4Q-212S 24VDC G4Q-212S 24VDC G4Q 1166H G4Q212SDC24 OMRON Relay ratchet DPDT Plug-in View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G4Q-212S 24VDC G4Q 1166H G4Q212SDC24 OMRON Relay ratchet DPDT Plug-in

G4Q-212S 24VDC

G4Q 1166H

G4Q212SDC24

OMRON

1 Pcs.

Relay ratchet DPDT Plug-in DPDT Plug-in Ratchet Relay

Automation > Switching relay
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron G4Q-212S 24VDC relay ratchet DPDT plug-in executes alternating switching operations driven by incoming electrical pulses. Sequential relays are frequently utilized in automation logic where tasks must alternate with every trigger. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: G4Q-212S 24VDC
  • Catalogue code: G4Q 1166H
  • Catalogue title: G4Q-212S 24VDC G4Q 1166H G4Q212SDC24 OMRON Relay ratchet DPDT Plug-in
  • Product description: Features Unique ratchet relay Each contact in the double-pole contact mechanism performs alternate make-brake operation at each pulse input and is thus ideal for alternate operation or transfer/switching operation of a m
  • Manufacturer summary: Relay ratchet DPDT Plug-in DPDT Plug-in Ratchet Relay

More info

▲
Features

Unique ratchet relay

Each contact in the double-pole contact mechanism performs alternate make-brake operation at each pulse input and is thus ideal for alternate operation or transfer/switching operation of a motor.

  • Positive operation is assured due to the unique ratchet mechanism
  • Satisfies dielectric strength of 2,000VAC
  • Low power consumption (AC: approx. 6.4VA; DC: approx. 3.9W)
  • DPDT contact configuration
