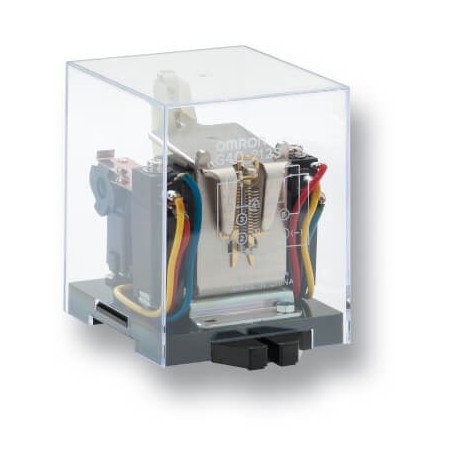

OMRON G4Q-212S 110VAC G4Q-212S 110VAC G4Q 1171D G4Q212SAC110 OMRON Relay ratchet DPDT Plug-in View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G4Q-212S 110VAC G4Q 1171D G4Q212SAC110 OMRON Relay ratchet DPDT Plug-in

G4Q-212S 110VAC

G4Q 1171D

G4Q212SAC110

OMRON

10 Pcs.

Relay ratchet DPDT Plug-in DPDT Plug-in Ratchet Relay

Automation > Switching relay
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron G4Q-212S 110VAC is a relay ratchet DPDT plug-in component built for sequential switching applications. In control panels and automation circuits, such electromechanical switches facilitate alternating contact states with successive pulse inputs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: G4Q-212S 110VAC
  • Catalogue code: G4Q 1171D
  • Catalogue title: G4Q-212S 110VAC G4Q 1171D G4Q212SAC110 OMRON Relay ratchet DPDT Plug-in
  • Product description: Features Unique ratchet relay Each contact in the double-pole contact mechanism performs alternate make-brake operation at each pulse input and is thus ideal for alternate operation or transfer/switching operation of a m
  • Manufacturer summary: Relay ratchet DPDT Plug-in DPDT Plug-in Ratchet Relay

More info

▲
Features

Unique ratchet relay

Each contact in the double-pole contact mechanism performs alternate make-brake operation at each pulse input and is thus ideal for alternate operation or transfer/switching operation of a motor.

  • Positive operation is assured due to the unique ratchet mechanism
  • Satisfies dielectric strength of 2,000VAC
  • Low power consumption (AC: approx. 6.4VA; DC: approx. 3.9W)
  • DPDT contact configuration

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
