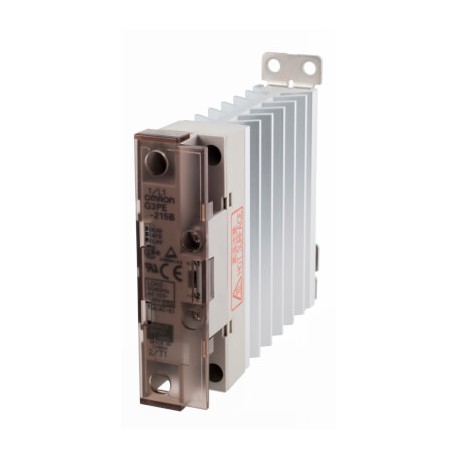

G3PE-515B-2 12-24VDC G3PE2025M G3PE515B2DC1224,1 OMRON 15A 200-480Vac 3-phase mounting screw with sink
G3PE-515B-2 12-24VDC
G3PE2025M
G3PE515B2DC1224.1
OMRON
1 Pcs.
Automation > Solid state relay
G3PB
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Incorporating an integrated thermal management sink, the Omron G3PE-515B-2 12-24VDC is a three-phase solid-state relay designed for demanding industrial heating and motor applications. Multi-phase switching components provide balanced power distribution across complex electrical grids while eliminating arcing and contact wear. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 1: 100 to 240 VAC (75 to 264 VAC)
- 25 A (at 40°C): 260 A 2 s
- 35 A: 1,260 A 2 s
- 45 A: 9 kW (at 200 VAC)
- 200 to 480 VAC (180 to 528 VAC): 15 A (at 40°C)
- 25 A (at 40°C): 1,350 A 2 s
- 35 A: 14 kW (at 400 VAC)
- 45 A: 6,600 A 2 s
- 3: 200 to 480 VAC (180 to 528 VAC)
- 2: G3PE-515B-2N DC12-24
- 25 A (at 40°C): 20.7 kW (at 480 VAC)
- 100×80×155: 2
- 35 A: 1,260 A 2 s
- 120×80×155: 2
- 45 A: 37.4 kW (at 480 VAC)
- 140×80×155: 2
More info
▲Omron’s G3PE Compact Industrial SSR with outstanding surge endurance
The G3PE features an original surge-pass circuit that gives outstanding surge endurance and protects the semiconductor device against voltages in excess of 30kV.
- Single and three phase, 15-45 A output current
- 100-240VAC and 200-480 VAC output voltages
- Models available without zero cross
- Improved surge dielectric strength for output circuits
- Terminal cover with finger protection
- Mount to DIN track or with screws
