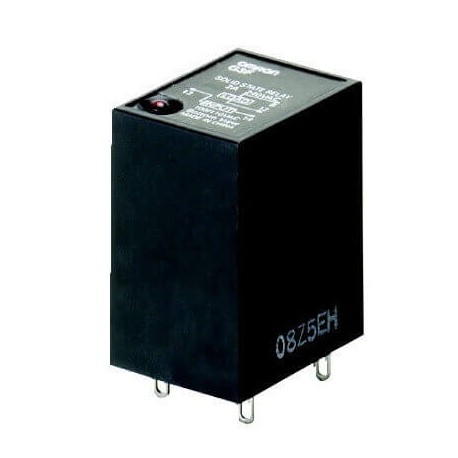

OMRON G3F-202SN-VD 200/220VAC G3F-202SN-VD 200/220VAC G3F 1030E G3F202SNVDAC200220 OMRON 3A 100-110vac Step-by-zero Plug-in View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3F-202SN-VD 200/220VAC G3F 1030E G3F202SNVDAC200220 OMRON 3A 100-110vac Step-by-zero Plug-in

G3F-202SN-VD 200/220VAC

G3F 1030E

G3F202SNVDAC200220

OMRON

10 Pcs.

3A 100-110vac Step-by-zero Plug-in 3A 100-110Vac Zero Pitch Plug-in Solid-state relay, plug-in, zero crossing, 1-pole, 2 A, 200-220 VAC

Automation > Solid state relay
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured for plug-in socket installation, the Omron G3F-202SN-VD 200/220VAC interface solid state relay bridges low-power controllers with AC field devices. Plug-in relays are widely utilized in control panels to facilitate fast replacement and isolation of sensitive electronic logic from high-voltage transients.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Application: Interface
  • Number of phases: 1
  • Mounting method: With plug-in socket
  • Terminal type: Plug-in
  • Rated operational voltage, AC: 100-240 V
  • Operating voltage range, AC: 75-264 V
  • Rated operation current Ie at AC-1: 2 A
  • Supply voltage AC: 200-220 V
  • Must operate voltage max.: 150 V
  • Must release voltage min.: 40 V
  • Maximum operating temperature: 80 °C
  • Minimum operating temperature: -30 °C
  • Isolation: Photocoupler
  • Voltage type (operating voltage) (EF005294): AC
  • Voltage type for actuating (EF008242): AC
  • Switching at zero-crossing (EF011956): Yes

More info

▲

Specifications

ApplicationInterface
Number of phases1
Mounting methodWith plug-in socket
Terminal typePlug-in
Complete with socket
LED indicator
Rated operational voltage, AC100-240 V
Operating voltage range, AC75-264 V
Rated operation current Ie at AC-12 A
Supply voltage AC200-220 V
Must operate voltage max.150 V
Must release voltage min.40 V
Maximum operating temperature80 °C
Minimum operating temperature-30 °C
IsolationPhotocoupler
Switching at zero-crossing
