> OMRON > Vision Systems > XPECTIA FZ > FH 0007G

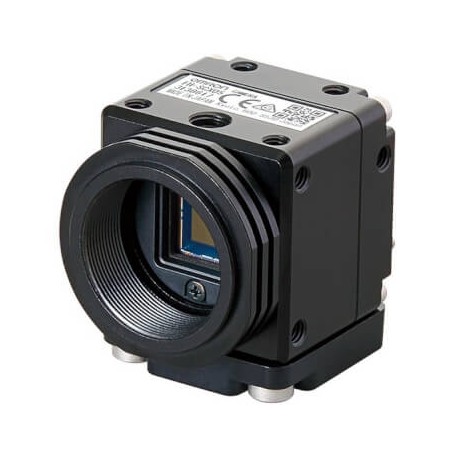

OMRON FH-SC12 FH-SC12 FH 0007G FHSC12 OMRON Camera FH-color High-resolution 12Mp View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FH-SC12 FH 0007G FHSC12 OMRON Camera FH-color High-resolution 12Mp

FH-SC12

FH 0007G

FHSC12

OMRON

1 Pcs.

Camera FH-color High-resolution 12Mp FH Color Camera High Resolution 12Mp FH camera, high resolution 12M pixel, colour - DO NOT QUOTE FOR NEW PROJECTS - USE FH-SCX12

Automation > Machine vision system (MVS)
XPECTIA FZ

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

Number of pixels12 MP
Autofocus
Camera familyFH/FZ
Camera typeColor
Frame rate39.9 fps
Image width4084 pixels
Image height3072 pixels
Scan typeArea scan
Shutter typeGlobal
Image sensor format1.76"
Lens mountM42
Lens typeN/A
Pixel size5.5 µm
Degree of protection (IP)IP10

Accessories

3Z4S-LE SV-1214HAccessory vision, lens 12 mm, high resolution, low distortion
3Z4S-LE SV-1214VAccessory vision, lens 12 mm
3Z4S-LE SV-1614HAccessory vision, lens 16 mm, high resolution, low distortion
3Z4S-LE SV-1614VAccessory vision, lens 16 mm
3Z4S-LE SV-2514HAccessory vision, lens 25 mm, high resolution, low distortion
3Z4S-LE SV-2514VAccessory vision, lens 25 mm
3Z4S-LE SV-3514HAccessory vision, lens 35 mm, high resolution, low distortion
3Z4S-LE SV-3518VAccessory vision, lens 35 mm
3Z4S-LE SV-5014HAccessory vision, lens 50 mm, high resolution, low distortion
3Z4S-LE SV-5018VAccessory vision, lens 50 mm
3Z4S-LE SV-7525HAccessory vision, lens 75 mm, high resolution, low distortion
3Z4S-LE SV-EXRExtension tube set, 7 piece (40, 20, 10, 5, 2, 1, 0.5 mm)
FZ-VS3 10MAccessory vision, FH and FZ, standard camera cable, 10m
FZ-VS3 3MAccessory vision, FH and FZ, standard camera cable, 3m
FZ-VS3 5MAccessory vision, FH and FZ, standard camera cable, 5m
FZ-VS4 15MAccessory vision, FH and FZ, camera cable, long distance, 15m
FZ-VSB3 10MAccessory vision, FH and FZ, camera cable, bend resistant, 10 m
FZ-VSB3 5MAccessory vision, FH and FZ, camera cable, bend resistant, 5 m
FZ-VSJFZ Camera cable extension hub (max 3 cables 45m)
FZ-VSL3 10MAccessory vision, FH and FZ, camera cable, standard, right angled connector, 10 m
FZ-VSL3 3MAccessory vision, FH and FZ, camera cable, standard, right angled connector, 3 m
FZ-VSL3 5MAccessory vision, FH and FZ, camera cable, standard, right angled connector, 5m
FZ-VSLB3 10MAccessory vision, FH and FZ, camera cable, bend resistant, right angled connector, 10m
FZ-VSLB3 5MAccessory vision, FH and FZ, camera cable, bend resistant, right angled connector, 5m
