> OMRON > Vision Systems > XPECTIA FZ > FH 0013A

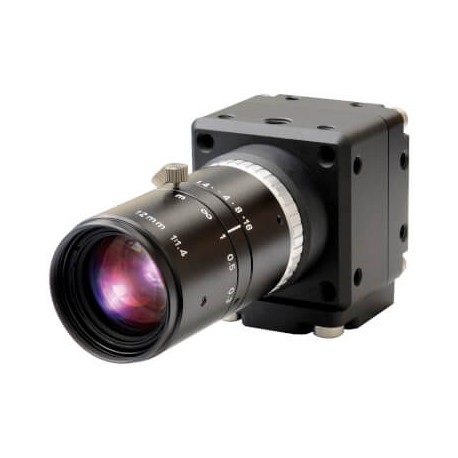

OMRON FH-SC FH-SC FH 0013A FHSC OMRON Camera FH Standard color 640x480 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FH-SC FH 0013A FHSC OMRON Camera FH Standard color 640x480

FH-SC

FH 0013A

FHSC

OMRON

1 Pcs.

Camera FH Standard color 640x480 FH camera, standard resolution, colour

Automation > Machine vision system (MVS)
XPECTIA FZ

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

Number of pixels0.3 MP
Autofocus
Camera familyFH/FZ
Camera typeColor
Frame rate308 fps
Image width640 pixels
Image height480 pixels
Scan typeArea scan
Shutter typeGlobal
Image sensor format1/3"
Lens mountC-mount
Lens typeN/A
Pixel size7.4 µm
Degree of protection (IP)IP10

Accessories

3Z4S-LE SV-10028HAccessory vision, lens 100 mm, high resolution, low distortion
3Z4S-LE SV-1214HAccessory vision, lens 12 mm, high resolution, low distortion
3Z4S-LE SV-1214VAccessory vision, lens 12 mm
3Z4S-LE SV-1614HAccessory vision, lens 16 mm, high resolution, low distortion
3Z4S-LE SV-1614VAccessory vision, lens 16 mm
3Z4S-LE SV-2514HAccessory vision, lens 25 mm, high resolution, low distortion
3Z4S-LE SV-2514VAccessory vision, lens 25 mm
3Z4S-LE SV-3514HAccessory vision, lens 35 mm, high resolution, low distortion
3Z4S-LE SV-3518VAccessory vision, lens 35 mm
3Z4S-LE SV-5014HAccessory vision, lens 50 mm, high resolution, low distortion
3Z4S-LE SV-7525HAccessory vision, lens 75 mm, high resolution, low distortion
3Z4S-LE SV-EXRExtension tube set, 7 piece (40, 20, 10, 5, 2, 1, 0.5 mm)
FZ-VS3 10MAccessory vision, FH and FZ, standard camera cable, 10m
FZ-VS3 3MAccessory vision, FH and FZ, standard camera cable, 3m
FZ-VS3 5MAccessory vision, FH and FZ, standard camera cable, 5m
FZ-VS4 15MAccessory vision, FH and FZ, camera cable, long distance, 15m
FZ-VSB3 10MAccessory vision, FH and FZ, camera cable, bend resistant, 10 m
FZ-VSB3 5MAccessory vision, FH and FZ, camera cable, bend resistant, 5 m
FZ-VSJFZ Camera cable extension hub (max 3 cables 45m)
FZ-VSL3 10MAccessory vision, FH and FZ, camera cable, standard, right angled connector, 10 m
FZ-VSL3 3MAccessory vision, FH and FZ, camera cable, standard, right angled connector, 3 m
FZ-VSL3 5MAccessory vision, FH and FZ, camera cable, standard, right angled connector, 5m
FZ-VSLB3 10MAccessory vision, FH and FZ, camera cable, bend resistant, right angled connector, 10m

ETIM for 377457 Sensors (EC004672)
Feature Name Feature Value
Voltage type (EF000187) DC
Model (EF000010) Camera
Type of interface (EF006977) Other
Number of outputs, signalling function, undelayed, with contact (EF003348) 0
Number of outputs, signalling function, undelayed, semiconductors (EF003350) 0
