View larger
Images are for illustrative purposes only. Please refer to data sheet for details

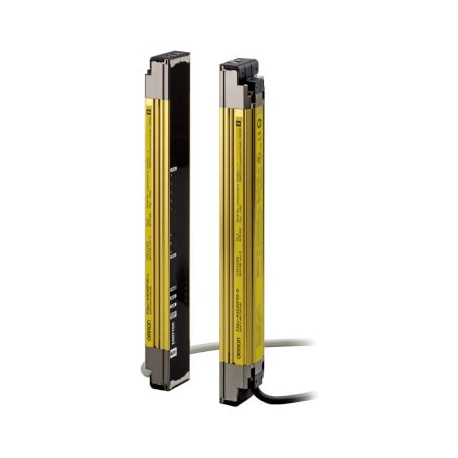

F3SJ-A0960P25-TS F3SJ2026E F3SJA0960P25TS OMRON Class IV Advanced PLe Hand 960mm Customized
F3SJ-A0960P25-TS
F3SJ2026E
F3SJA0960P25TS
OMRON
1 Pcs.
Class IV Advanced PLe Hand 960mm Customized
Safety Light Curtain, F3SJ Advanced, Type 4, 25 mm resolution, range 0.2 to 9.0 m, height 960 mm, PNP, TS version
Automation > Light curtain
F3SJ-A and MS Barriers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Type of switching output of the OSSD (EF003959) | PNP |
| Scope of delivery of the one-way system (EF004032) | Transmitter and receiver |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP65 |
| Type of safety according to IEC 61496-1 (EF004105) | 4 |
| Type of interface for safety communication (EF003956) | Other |
| Type of electric connection (EF003961) | Connector M12 |
| Operation agent-safety class (EF003982) | Safety class 3 |
| Explosion safety category for gas (EF003997) | None |
| Cascadable (EF000507) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| With beam coding (EF004114) | Yes |
| Clock control possible (EF004119) | No |
| Max. output current at protected output (EF004035) | 300 mA |
| Number of protected contact energized outputs (EF003952) | 0 |
| Number of semiconductor outputs with signalling function (EF003945) | 3 |
| Safety field height (EF004103) | 960 mm |
| Wavelength of the sensor (EF004132) | 870 nm |
| Detection capability for test bodies (EF003991) | 25 mm |
| Resolution of the light curtain (EF006784) | 20 mm |
| Number of protected semiconductor outputs (EF003951) | 2 |
| Transmission range of the safety field (EF004098) | 9 m |
| Switching voltage of OSSD at state "high" (EF004102) | 24 V |
| Width sensor (EF007094) | 30 mm |
| Height of sensor (EF007283) | 24 mm |
| Length of sensor (EF007334) | 960 mm |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Rated control supply voltage DC (EF003980) | 19.2 V |
| Ambient temperature (EF002386) | -10 °C |
