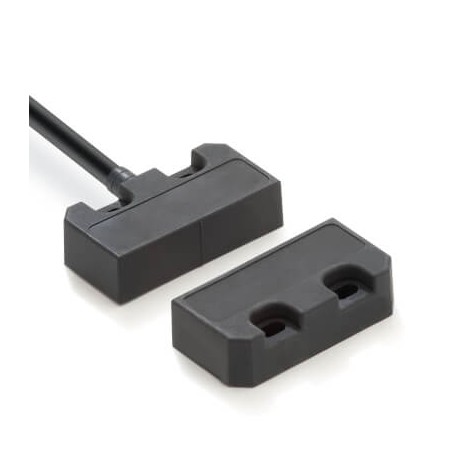

OMRON F3S-TGR-NSPU-21-05 F3S-TGR-NSPU-21-05 AA040377A F3STGRNSPU2105 OMRON Switch Sec. PLe Small Plast. RFID Only 2NC+1NO LED 5m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NSPU-21-05 AA040377A F3STGRNSPU2105 OMRON Switch Sec. PLe Small Plast. RFID Only 2NC+1NO LED 5m

F3S-TGR-NSPU-21-05

AA040377A

F3STGRNSPU2105

OMRON

1 Pcs.

Switch Sec. PLe Small Plast. RFID Only 2NC+1NO LED 5m Non-contact door switch, RFID unique coded, small plastic, 2NC+1NO, 5m cable

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron F3S-TGR-NSPU-21-05 safety switch utilizes RFID technology to provide secure, tamper-resistant monitoring for safety doors and protective machine enclosures. These units help maintain stringent safety compliance across automated manufacturing lines by preventing operation when guards are open.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Coating housing (EF001601): Plastic-coated
  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Plastic
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Rated operation current Ie at AC-15, 125 V (EF007082): 0 A

More info

▲
Door switch typeNon-contact, RFID codedGuard-lockCodingUniqueMaterial housingPolyesterAmbient temperature (operating)-25-80 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodCableCable length5 mCable exit directionLeftDegree of protection (IP)IP69KOutput typeTransistorShapeRectangular smallOverall length of sensor50 mmHeight of sensor13 mmWidth of sensor25.5 mmSwitch without actuator
