View larger
Images are for illustrative purposes only. Please refer to data sheet for details

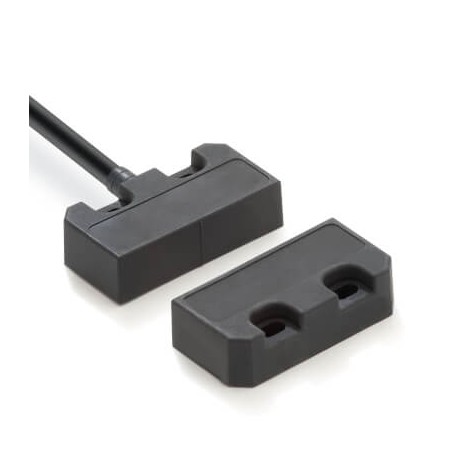

F3S-TGR-NSPR-21-M1J8 AA031318G F3STGRNSPR21M1J8 OMRON Switch Sec. PLe Small Plast. Reed 2NC+1NO M12-8pin
F3S-TGR-NSPR-21-M1J8
AA031318G
F3STGRNSPR21M1J8
OMRON
1 Pcs.
Switch Sec. PLe Small Plast. Reed 2NC+1NO M12-8pin
Non-contact door switch, reed, small plastic, 2NC+1NO, M12 connector pigtail
Automation > Position switch with separate actuator
Contactless Switches TGR
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Door switch typeNon-contact, ReedGuard-lockCodingUncodedMaterial housingPolyesterAmbient temperature (operating)-25-80 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodM12 pigtail connectorCable length0.25 mCable exit directionLeftDegree of protection (IP)IP67Output typeReed contactShapeRectangular smallOverall length of sensor50 mmHeight of sensor13 mmWidth of sensor25.5 mmSwitch without actuator
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Type of switching contact (EF003591) | Other |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Plastic-coated |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Connector M12 |
| Type of interface (EF006977) | None |
| Housing material (EF001596) | Plastic |
| Explosion safety category for gas (EF003997) | None |
| With status indication (EF001602) | No |
| Suitable for safety functions (EF001597) | Yes |
| Forced opening (EF006694) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 1 A |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0 A |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0.2 A |
| Rated operation current Ie at DC-13, 230 V (EF001386) | 0 A |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 0 A |
| Width sensor (EF007094) | 25.5 mm |
| Rated operation current Ie at AC-15, 24 V (EF007084) | 0 A |
| Height of sensor (EF007283) | 13 mm |
| Length of sensor (EF007334) | 50 mm |
| Ambient temperature during operating (EF007515) | -25 °C |
