F3S-TGR-NSPM-21-05 AA040380A F3STGRNSPM2105 OMRON Switch Sec. PLe Small Plast. RFID Master 2NC+1NO LED 5m
F3S-TGR-NSPM-21-05
AA040380A
F3STGRNSPM2105
OMRON
1 Pcs.
Automation > Position switch with separate actuator
Contactless Switches TGR
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

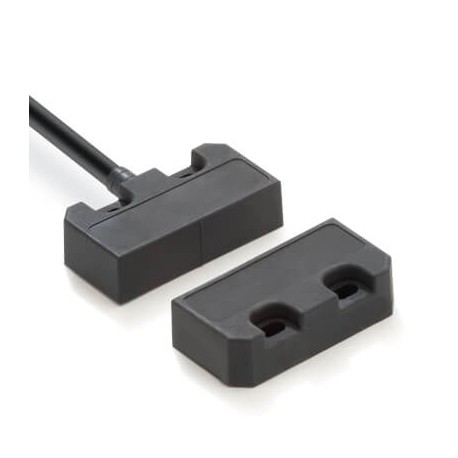

An Omron F3S-TGR-NSPM-21-05 AA040380A F3STGRNSPM2105 OMRON Switch Sec. PLe Small Plast. RFID Master 2NC+1NO LED 5m acts as a high-integrity safety switch designed to detect the closure of protective machine barriers. Safety interlock systems rely on these coded RFID units to prevent tampering and ensure machinery power circuits trip if a safeguard is bypassed.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Construction type housing (EF004008): Cuboid
- Coating housing (EF001601): Plastic-coated
- Type of electric connection (EF003961): With cable preassembled
- Housing material (EF001596): Plastic
- With status indication (EF001602): Yes
- Suitable for safety functions (EF001597): Yes
- Forced opening (EF006694): No
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 1
- Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
- Rated operation current Ie at DC-13, 125 V (EF007085): 0 A
- Number of safety auxiliary contacts (EF006940): 0
- Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
- Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
- Number of contacts as normally closed contact (EF008255): 2
- Rated operation current Ie at AC-15, 125 V (EF007082): 0 A
