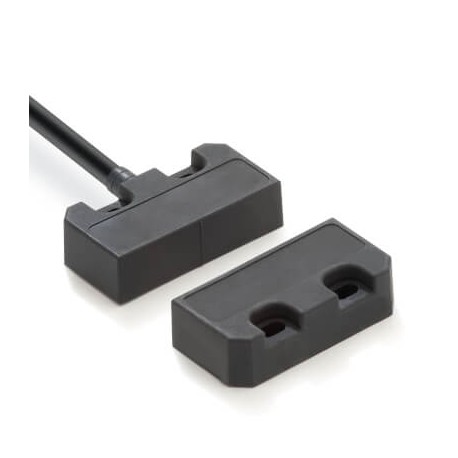

OMRON F3S-TGR-NSPC-21-M1J8 F3S-TGR-NSPC-21-M1J8 AA031321G F3STGRNSPC21M1J8,1 OMRON Switch Sec. PLe Small Plast. Codif. 2NC+1NO LED's M1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NSPC-21-M1J8 AA031321G F3STGRNSPC21M1J8,1 OMRON Switch Sec. PLe Small Plast. Codif. 2NC+1NO LED's M1..

F3S-TGR-NSPC-21-M1J8

AA031321G

F3STGRNSPC21M1J8.1

OMRON

1 Pcs.

Switch Sec. PLe Small Plast. Codif. 2NC+1NO LED's M12-8pin Non-contact door switch, coded, small plastic, 2NC+1NO, M12 connector pigtail

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron F3S-TGR-NSPC-21-M1J8 safety switch is a coded plastic interlock sensor designed for monitoring machine enclosures and access doors. By verifying that safety barriers remain closed, this device helps protect operators from active hazards within automated production lines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Coating housing (EF001601): Plastic-coated
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Plastic
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 2

More info

▲
Door switch typeNon-contact, Hall codedGuard-lockCodingBasicMaterial housingPolyesterAmbient temperature (operating)-25-80 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodM12 pigtail connectorCable length0.25 mCable exit directionLeftDegree of protection (IP)IP67Output typePNPShapeRectangular smallOverall length of sensor50 mmHeight of sensor13 mmWidth of sensor25.5 mmSwitch without actuator
