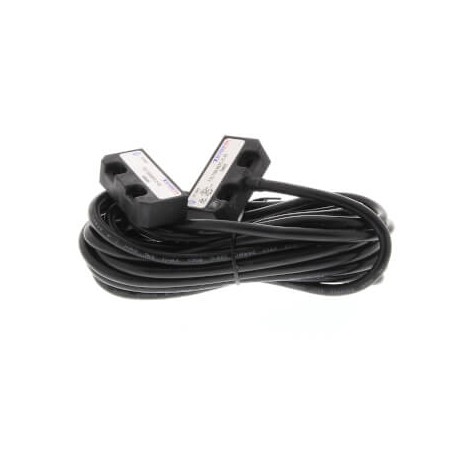

OMRON F3S-TGR-NSPC-21-10 F3S-TGR-NSPC-21-10 AA031320R F3STGRNSPC2110,1 OMRON Switch Sec. PLe Small Plast. Codif. 2NC+1NO LED Cable 10m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NSPC-21-10 AA031320R F3STGRNSPC2110,1 OMRON Switch Sec. PLe Small Plast. Codif. 2NC+1NO LED Cable 10m

F3S-TGR-NSPC-21-10

AA031320R

F3STGRNSPC2110.1

OMRON

1 Pcs.

Switch Sec. PLe Small Plast. Codif. 2NC+1NO LED Cable 10m Non-contact door switch, coded, small plastic, 2NC+1NO, 10 m cable

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron F3S-TGR-NSPC-21-10 small plastic coded switch delivers reliable non-contact position monitoring for safety doors and protective covers in automated plants. By using encoded actuators, it prevents tampering and ensures machinery halts safely during access attempts.

  • Construction type housing (EF004008): Cuboid
  • Coating housing (EF001601): Plastic-coated
  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Plastic
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Rated operation current Ie at AC-15, 125 V (EF007082): 0 A

Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

More info

▲
Door switch typeNon-contact, Hall codedGuard-lockCodingBasicMaterial housingPolyesterAmbient temperature (operating)-25-80 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodCableCable length10 mCable exit directionLeftDegree of protection (IP)IP69KOutput typePNPShapeRectangular smallOverall length of sensor50 mmHeight of sensor13 mmWidth of sensor25.5 mmSwitch without actuator
