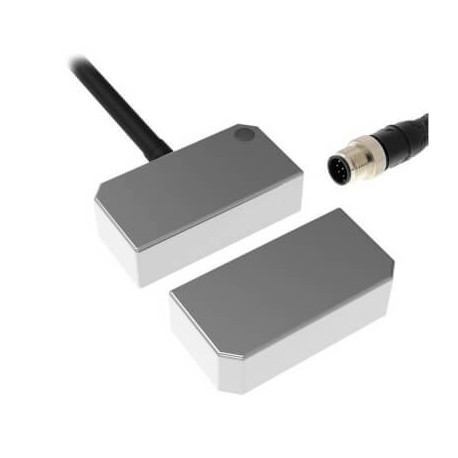

OMRON F3S-TGR-NSFR-21-M1J8 F3S-TGR-NSFR-21-M1J8 AA040358E F3STGRNSFR21M1J8 OMRON Switch Sec. PLe Small Power Reed-2NC+1NO LED M12-8p View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NSFR-21-M1J8 AA040358E F3STGRNSFR21M1J8 OMRON Switch Sec. PLe Small Power Reed-2NC+1NO LED M12-8p

F3S-TGR-NSFR-21-M1J8

AA040358E

F3STGRNSFR21M1J8

OMRON

1 Pcs.

Switch Sec. PLe Small Power Reed-2NC+1NO LED M12-8p Non-contact door switch, reed, small stainless steel food design, 2NC+1NO, M12 connector pigtail

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron F3S-TGR-NSFR-21-M1J8 switch sec. ple small power reed-2nc+1no led m12-8p provides reliable non-contact position monitoring for safety doors and machine enclosures in industrial automation systems. This safety sensor helps safeguard operators by stopping hazardous processes when perimeter guards are opened.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 1 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 25.5 mm
  • Height of sensor (EF007283): 13 mm
  • Length of sensor (EF007334): 50 mm

More info

▲
Door switch typeNon-contact, ReedGuard-lockCodingUncodedMaterial housingStainless steel, foodAmbient temperature (operating)-25-105 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodM12 pigtail connectorCable length0.25 mCable exit directionLeftDegree of protection (IP)IP67Output typeReed contactShapeRectangular smallOverall length of sensor50 mmHeight of sensor13 mmWidth of sensor25.5 mmSwitch without actuator
