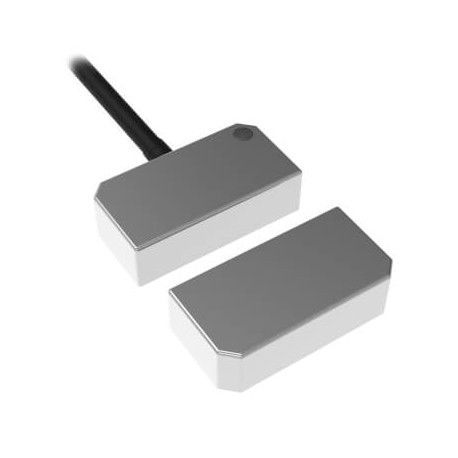

OMRON F3S-TGR-NSFR-21-05 F3S-TGR-NSFR-21-05 AA040357G F3STGRNSFR2105 OMRON Switch Sec. PLe Small Power Reed-2NC+1NO LED 5m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NSFR-21-05 AA040357G F3STGRNSFR2105 OMRON Switch Sec. PLe Small Power Reed-2NC+1NO LED 5m

F3S-TGR-NSFR-21-05

AA040357G

F3STGRNSFR2105

OMRON

1 Pcs.

Switch Sec. PLe Small Power Reed-2NC+1NO LED 5m Non-contact door switch, reed, small stainless steel food design, 2NC+1NO, 5m cable

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Magnetic safety sensors serve as dependable gate and position monitoring devices that safeguard personnel by interrupting machine power when protective barriers are displaced. The Omron F3S-TGR-NSFR-21-05 features an integrated preassembled cable for straightforward integration into industrial safety circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 1 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 25.5 mm
  • Height of sensor (EF007283): 13 mm
  • Length of sensor (EF007334): 50 mm
  • Ambient temperature during operating (EF007515): -25 °C

More info

▲
Door switch typeNon-contact, ReedGuard-lockCodingUncodedMaterial housingStainless steel, foodAmbient temperature (operating)-25-105 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodCableCable length5 mCable exit directionLeftDegree of protection (IP)IP69KOutput typeReed contactShapeRectangular smallOverall length of sensor50 mmHeight of sensor13 mmWidth of sensor25.5 mmSwitch without actuator
