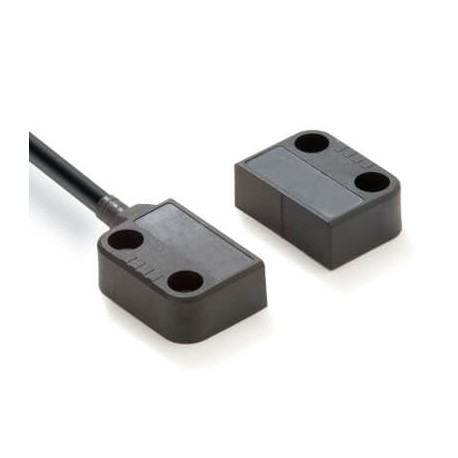

OMRON F3S-TGR-NMPR-21-10-R F3S-TGR-NMPR-21-10-R AA040514F F3STGRNMPR2110R OMRON Switch Sec. PLe Mini. Plast. Reed 2NC+1NO Cable 10m Rig.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NMPR-21-10-R AA040514F F3STGRNMPR2110R OMRON Switch Sec. PLe Mini. Plast. Reed 2NC+1NO Cable 10m Rig..

F3S-TGR-NMPR-21-10-R

AA040514F

F3STGRNMPR2110R

OMRON

1 Pcs.

Switch Sec. PLe Mini. Plast. Reed 2NC+1NO Cable 10m Right Non-contact door switch, reed, miniature plastic, 2NC+1NO, 10m cable, cable entry right sided

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron F3S-TGR-NMPR-21-10-R is a miniature plastic reed safety switch employed to safeguard access points on automated machinery where reliable non-wear sensing is required. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Plastic
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0.5 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 26 mm
  • Height of sensor (EF007283): 13 mm
  • Length of sensor (EF007334): 41 mm
  • Ambient temperature during operating (EF007515): -25 °C

More info

▲
Door switch typeNon-contact, ReedGuard-lockCodingUncodedMaterial housingPolyesterAmbient temperature (operating)-25-80 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodCableCable length10 mCable exit directionRightDegree of protection (IP)IP69KOutput typeReed contactShapeRectangular miniatureOverall length of sensor41 mmHeight of sensor13 mmWidth of sensor26 mmSwitch without actuator

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
