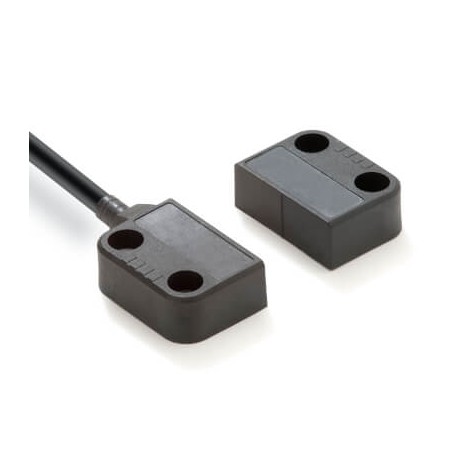

OMRON F3S-TGR-NMPR-21-02 F3S-TGR-NMPR-21-02 AA026104G F3STGRNMPR2102 OMRON Switch Sec. PLe Miniature Plast. Reed 2NC+1NO Cable 5m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NMPR-21-02 AA026104G F3STGRNMPR2102 OMRON Switch Sec. PLe Miniature Plast. Reed 2NC+1NO Cable 5m

F3S-TGR-NMPR-21-02

AA026104G

F3STGRNMPR2102

OMRON

1 Pcs.

Switch Sec. PLe Miniature Plast. Reed 2NC+1NO Cable 5m Non-contact door switch, Miniature, reed, 2m, plastic, 2NC+1NO contacts

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron miniature plastic reed safety switch, part number F3S-TGR-NMPR-21-02, is a non-contact safety sensor deployed to monitor protective doors, removable covers, and safety shields on automated systems. It signals control units when alignment between the sensor and actuator is broken.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Plastic
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0.5 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 26 mm
  • Height of sensor (EF007283): 13 mm
  • Length of sensor (EF007334): 41 mm
  • Ambient temperature during operating (EF007515): -25 °C

More info

▲
Door switch typeNon-contact, ReedGuard-lockCodingUncodedMaterial housingPolyesterAmbient temperature (operating)-25-80 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodCableCable length2 mCable exit directionLeftDegree of protection (IP)IP69KOutput typeReed contactShapeRectangular miniatureOverall length of sensor41 mmHeight of sensor13 mmWidth of sensor26 mmSwitch without actuator
