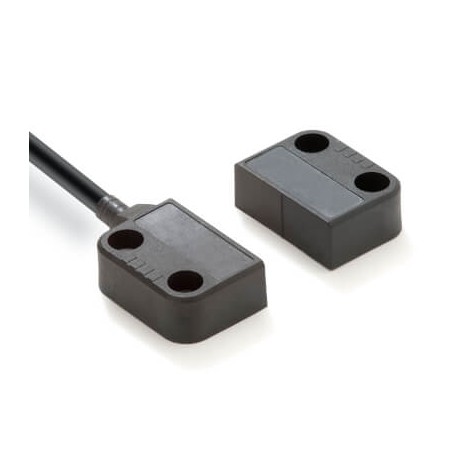

OMRON F3S-TGR-NMPR-20-M1J8 F3S-TGR-NMPR-20-M1J8 AA026103R F3STGRNMPR20M1J8 OMRON Switch Sec. PLe Miniature Plast. Reed 2NC M12-8pin View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NMPR-20-M1J8 AA026103R F3STGRNMPR20M1J8 OMRON Switch Sec. PLe Miniature Plast. Reed 2NC M12-8pin

F3S-TGR-NMPR-20-M1J8

AA026103R

F3STGRNMPR20M1J8

OMRON

1 Pcs.

Switch Sec. PLe Miniature Plast. Reed 2NC M12-8pin Non-contact door switch, reed, miniature plastic, 2NC, M12 connector pigtail

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The F3S-TGR-NMPR-20-M1J8 AA026103R F3STGRNMPR20M1J8 OMRON Switch Sec. PLe Miniature Plast. Reed 2NC M12-8pin is a non-contact safety switch employed to monitor movable safety guards in automated production lines. Such devices help prevent machinery from operating while protective doors remain open. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Plastic
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0.5 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 26 mm
  • Height of sensor (EF007283): 13 mm
  • Length of sensor (EF007334): 41 mm

More info

▲
Door switch typeNon-contact, ReedGuard-lockCodingUncodedMaterial housingPolyesterAmbient temperature (operating)-25-80 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodM12 pigtail connectorCable length0.25 mCable exit directionLeftDegree of protection (IP)IP67Output typeReed contactShapeRectangular miniatureOverall length of sensor41 mmHeight of sensor13 mmWidth of sensor26 mmSwitch without actuator
