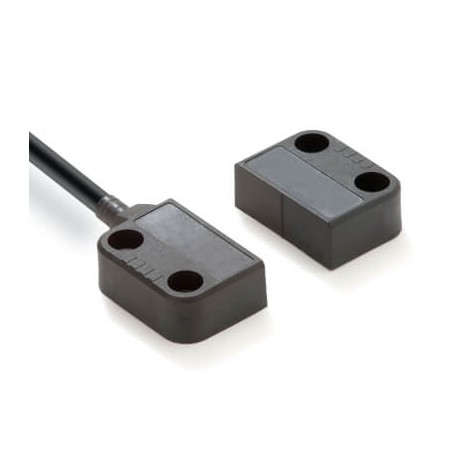

OMRON F3S-TGR-NMPC-21-05-R F3S-TGR-NMPC-21-05-R AA040314C F3STGRNMPC2105R OMRON Switch Sec. PLe Mini. Plast. Codif. 2NC+1NO LED 5m Right View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NMPC-21-05-R AA040314C F3STGRNMPC2105R OMRON Switch Sec. PLe Mini. Plast. Codif. 2NC+1NO LED 5m Right

F3S-TGR-NMPC-21-05-R

AA040314C

F3STGRNMPC2105R

OMRON

1 Pcs.

Switch Sec. PLe Mini. Plast. Codif. 2NC+1NO LED 5m Right Non-contact door switch, coded, miniature plastic, 2NC+1NO, 5 m cable, cable entry right sided

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron miniature plastic coded safety switch provides reliable non-contact interlock monitoring for lightweight doors and shields on automated production lines. Industrial safety switches of this type help ensure that machine processes halt immediately if an operator attempts to access a restricted hazard zone.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Plastic
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Rated operation current Ie at AC-15, 125 V (EF007082): 0 A
  • Width sensor (EF007094): 26 mm

More info

▲
Door switch typeNon-contact, Hall codedGuard-lockCodingBasicMaterial housingPolyesterAmbient temperature (operating)-25-80 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodCableCable length5 mCable exit directionRightDegree of protection (IP)IP69KOutput typeTransistorShapeRectangular miniatureOverall length of sensor41 mmHeight of sensor13 mmWidth of sensor26 mmSwitch without actuator
