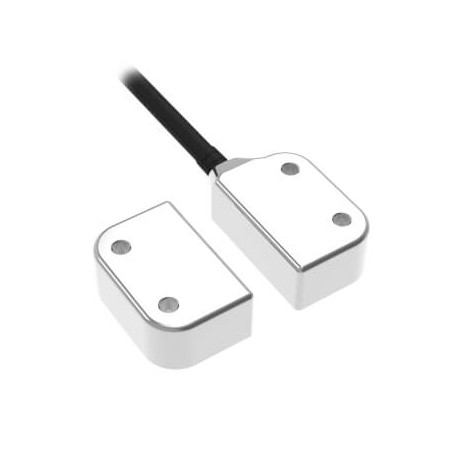

OMRON F3S-TGR-NMHR-21-05 F3S-TGR-NMHR-21-05 AA040352F F3STGRNMHR2105 OMRON Switch Sec. PLe Miniature Toilet Reed switch 2NC+1NO 5m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NMHR-21-05 AA040352F F3STGRNMHR2105 OMRON Switch Sec. PLe Miniature Toilet Reed switch 2NC+1NO 5m

F3S-TGR-NMHR-21-05

AA040352F

F3STGRNMHR2105

OMRON

1 Pcs.

Switch Sec. PLe Miniature Toilet Reed switch 2NC+1NO 5m Non-contact door switch, reed, miniature stainless steel hygienic design, 2NC+1NO, 5m cable

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron F3S-TGR-NMHR-21-05 is a miniature metal reed switch designed for safety applications in confined areas. Reed switches offer dependable magnetic contact closure for monitoring access doors on specialized industrial machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0.5 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 26 mm
  • Height of sensor (EF007283): 13 mm
  • Length of sensor (EF007334): 45 mm
  • Ambient temperature during operating (EF007515): -25 °C

More info

▲
Door switch typeNon-contact, ReedGuard-lockCodingUncodedMaterial housingStainless steel, hygienicAmbient temperature (operating)-25-105 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodCableCable length5 mCable exit directionLeftDegree of protection (IP)IP69KOutput typeReed contactShapeRectangular miniatureOverall length of sensor45 mmHeight of sensor13 mmWidth of sensor26 mmSwitch without actuator
