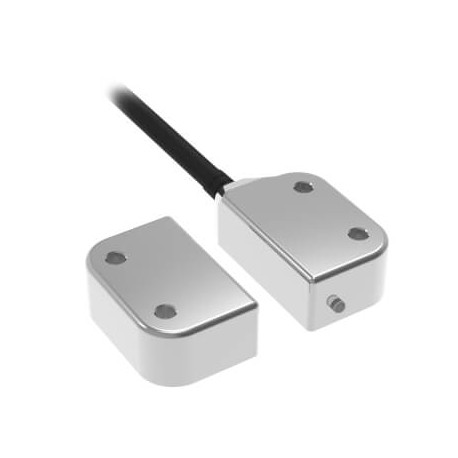

OMRON F3S-TGR-NMHC-21-10 F3S-TGR-NMHC-21-10 AA040320H F3STGRNMHC2110 OMRON Switch Sec. PLe Miniature Toilet Codif. 2NC+1NO LED 10m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NMHC-21-10 AA040320H F3STGRNMHC2110 OMRON Switch Sec. PLe Miniature Toilet Codif. 2NC+1NO LED 10m

F3S-TGR-NMHC-21-10

AA040320H

F3STGRNMHC2110

OMRON

1 Pcs.

Switch Sec. PLe Miniature Toilet Codif. 2NC+1NO LED 10m Non-contact door switch, coded, miniature stainless steel hygienic design, 2NC+1NO, 10m cable

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Industrial automation installations use safety switches such as the Omron F3S-TGR-NMHC-21-10 to monitor access points on specialty enclosures and restricted service areas. These dedicated components maintain safety integrity by stopping machinery output when interlocked barriers are opened.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Metal
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Rated operation current Ie at AC-15, 125 V (EF007082): 0 A
  • Width sensor (EF007094): 26 mm

More info

▲
Door switch typeNon-contact, Hall codedGuard-lockCodingBasicMaterial housingStainless steel, hygienicAmbient temperature (operating)-25-105 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodCableCable length10 mCable exit directionLeftDegree of protection (IP)IP69KOutput typeTransistorShapeRectangular miniatureOverall length of sensor45 mmHeight of sensor15 mmWidth of sensor26 mmSwitch without actuator
