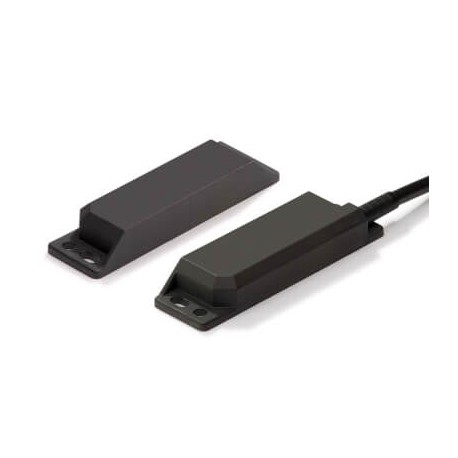

OMRON F3S-TGR-NLPM-21-05 F3S-TGR-NLPM-21-05 AA040384D F3STGRNLPM2105 OMRON Switch Sec. PLe Long-Plast. RFID Master 2NC+1NO LED 5m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NLPM-21-05 AA040384D F3STGRNLPM2105 OMRON Switch Sec. PLe Long-Plast. RFID Master 2NC+1NO LED 5m

F3S-TGR-NLPM-21-05

AA040384D

F3STGRNLPM2105

OMRON

1 Pcs.

Switch Sec. PLe Long-Plast. RFID Master 2NC+1NO LED 5m Non-contact door switch, RFID master coded, elongated plastic, 2NC+1NO, 5m cable

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron F3S-TGR-NLPM-21-05 switch sec. ple long-plast. rfid master 2nc+1no led 5m is an advanced non-contact safety switch employed in automated manufacturing plants to monitor movable guards and interlocked doors. Using coded RFID technology, it ensures machinery cannot operate unless designated safety barriers are securely closed.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Coating housing (EF001601): Plastic-coated
  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Plastic
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Rated operation current Ie at AC-15, 125 V (EF007082): 0 A

More info

▲
Door switch typeNon-contact, RFID codedGuard-lockCodingMasterMaterial housingPolyesterAmbient temperature (operating)-25-80 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodCableCable length5 mCable exit directionLeftDegree of protection (IP)IP69KOutput typeTransistorShapeRectangularOverall length of sensor88 mmHeight of sensor13 mmWidth of sensor25 mmSwitch without actuator
