View larger
Images are for illustrative purposes only. Please refer to data sheet for details

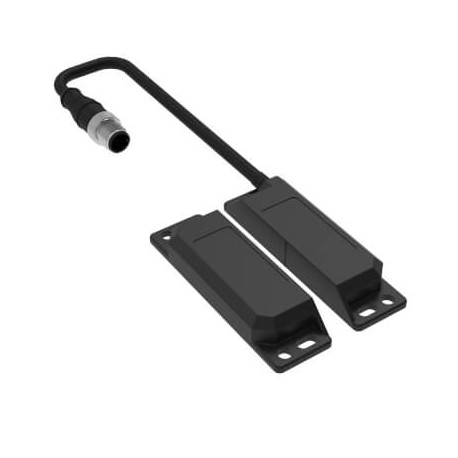

F3S-TGR-NLPC-20-M1J8 AA020781F F3STGRNLPC20M1J8 OMRON Switch Sec. PLe Long-Plast. Codif. 2NC LED's M12-8pin
F3S-TGR-NLPC-20-M1J8
AA020781F
F3STGRNLPC20M1J8
OMRON
1 Pcs.
Switch Sec. PLe Long-Plast. Codif. 2NC LED's M12-8pin
Non-contact door switch, coded, elongated sensor M12 connector, plastic, 2 NC contacts
Automation > Position switch with separate actuator
Contactless Switches TGR
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Door switch typeNon-contact, Hall codedGuard-lockCodingBasicMaterial housingPolyesterAmbient temperature (operating)-25-80 °CDoor contacts NC2Door contacts NO0LED indicatorConnection methodM12 pigtail connectorCable length0.25 mCable exit directionLeftDegree of protection (IP)IP67Output typeTransistorShapeRectangularOverall length of sensor88 mmHeight of sensor13 mmWidth of sensor25 mmSwitch without actuator
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Special construction |
| Type of switching contact (EF003591) | Other |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Connector M12 |
| Type of interface (EF006977) | None |
| Housing material (EF001596) | Plastic |
| Explosion safety category for gas (EF003997) | None |
| With status indication (EF001602) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| Forced opening (EF006694) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 0 A |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0 A |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0.2 A |
| Rated operation current Ie at DC-13, 230 V (EF001386) | 0 A |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 0 A |
| Width sensor (EF007094) | 25 mm |
| Rated operation current Ie at AC-15, 24 V (EF007084) | 0 A |
| Height of sensor (EF007283) | 13 mm |
| Length of sensor (EF007334) | 88 mm |
| Ambient temperature during operating (EF007515) | -25 °C |
