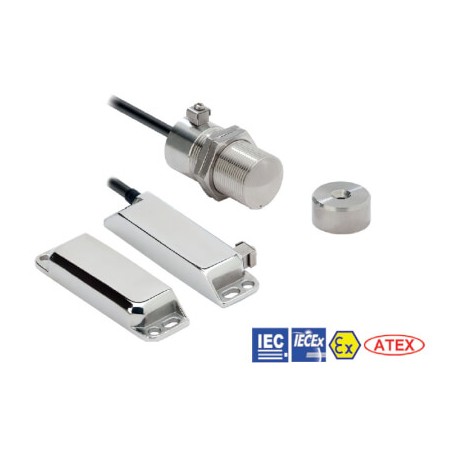

F3S-TGR-NLMX-21-05 AA040402F F3STGRNLMX2105 OMRON Switch Sec. PLe Long Metal ATEX 2NC+1NO 5m
F3S-TGR-NLMX-21-05
AA040402F
F3STGRNLMX2105
OMRON
1 Pcs.
Automation > Position switch with separate actuator
Contactless Switches TGR
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A metal ATEX safety switch (F3S-TGR-NLMX-21-05) from Omron is engineered for hazardous explosive atmospheres to provide reliable position monitoring on heavy-duty industrial enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Construction type housing (EF004008): Cuboid
- Degree of protection (IP) (EF005474): IP67
- Type of electric connection (EF003961): With cable preassembled
- Housing material (EF001596): Metal
- Explosion safety category for gas (EF003997): ATEX gas-ex-protection, Cat. 2G
More info
▲Explosion proof non-contact switches
Explosion proof reed non-contact switches monitor the status of guarding doors in petrochemical and food applications with explosive atmospheres.
- Based on reed technology
- Connect up to 6 switches in series
- Operates with all Omron safety controllers
- Operates behind stainless steel fittings
- Non-contact – no abrasion – no particles
- Compensation of mechanical tolerances
- Suitable for high pressure cleaning, CIP/SIP processes
- Conforms to safety categories up PLe acc. EN ISO13849-1
- For use in hazardous areas IECEx and ATEX EExd IIC T6 (Gas and Dust). Designed for Petro-chemical and food applications where explosive atmospheres are present.
Ordering information
Elongated sensors
Barrel sensors
Specifications
Mechanical data
IP 67 Certification for IP67 but can be used for SIP/CIP and high pressure cleaning like IP69K) | |||
Electrical data
Ex specification
II 2G Ex mb IIC T6Gb, II 2D Ex mb IIC T80 Db IP67* |
Approved standards
Accessories
Set of Torx safety screws | ||
Spacer (8 mm, Set of 2pcs.)1 | ||
Wiring examples (Single head connection)
G9SASingle sensor application with G9SA-301 | ||||
