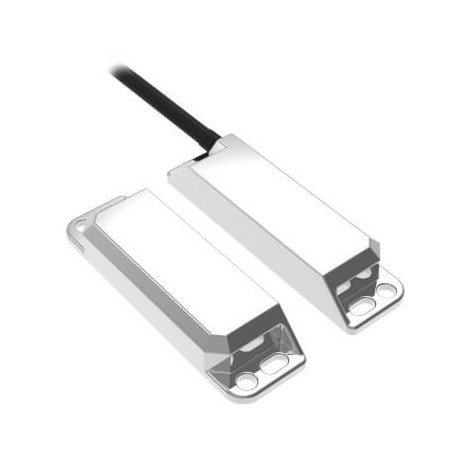

OMRON F3S-TGR-NLMC-21-M1J8 F3S-TGR-NLMC-21-M1J8 AA040330E F3STGRNLMC21M1J8 OMRON Switch Sec. PLe Long Metal Codif. LED 2NC+1NO M12-8pin View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NLMC-21-M1J8 AA040330E F3STGRNLMC21M1J8 OMRON Switch Sec. PLe Long Metal Codif. LED 2NC+1NO M12-8pin

F3S-TGR-NLMC-21-M1J8

AA040330E

F3STGRNLMC21M1J8

OMRON

1 Pcs.

Switch Sec. PLe Long Metal Codif. LED 2NC+1NO M12-8pin Non-contact door switch, coded, elongated stainless steel, 2NC+1NO, M12 connector pigtail

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilized in heavy-duty industrial settings, the F3S-TGR-NLMC-21-M1J8 AA040330E F3STGRNLMC21M1J8 OMRON Switch Sec. PLe Long Metal Codif. LED 2NC+1NO M12-8pin is a non-contact safety switch that monitors the alignment of safety gates and guards. It provides reliable signal feedback to safety relays to halt hazardous machinery when necessary. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Rated operation current Ie at AC-15, 125 V (EF007082): 0 A

More info

▲
Door switch typeNon-contact, Hall codedGuard-lockCodingBasicMaterial housingStainless steelAmbient temperature (operating)-25-105 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodM12 pigtail connectorCable length0.25 mCable exit directionLeftDegree of protection (IP)IP67Output typeTransistorShapeRectangularOverall length of sensor88 mmHeight of sensor14 mmWidth of sensor25 mmSwitch without actuator
