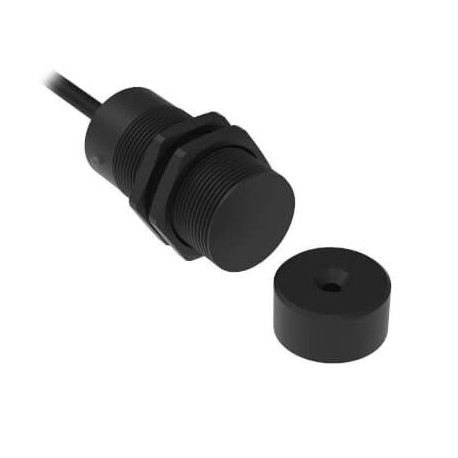

OMRON F3S-TGR-NBPR-21-10 F3S-TGR-NBPR-21-10 AA040363A F3STGRNBPR2110 OMRON Switch Sec. PLe, Cylindrical M30 Plast. Reed 2NC+1NO 10m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NBPR-21-10 AA040363A F3STGRNBPR2110 OMRON Switch Sec. PLe, Cylindrical M30 Plast. Reed 2NC+1NO 10m

F3S-TGR-NBPR-21-10

AA040363A

F3STGRNBPR2110

OMRON

1 Pcs.

Switch Sec. PLe, Cylindrical M30 Plast. Reed 2NC+1NO 10m Non-contact door switch, reed, barrel plastic M30, 2NC+1NO, 10m cable

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cylindrical plastic reed safety switch, designated as Omron F3S-TGR-NBPR-21-10, provides non-contact monitoring of movable guards and protective barriers in industrial automation setups. Units of this category are commonly deployed on machine access doors where reliable position verification is mandatory for operator safety.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Plastic
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 1 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.5 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 30 mm
  • Height of sensor (EF007283): 30 mm
  • Length of sensor (EF007334): 60 mm
  • Ambient temperature during operating (EF007515): -25 °C

More info

▲
Door switch typeNon-contact, ReedGuard-lockCodingUncodedMaterial housingPolyesterAmbient temperature (operating)-25-80 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodCableCable length10 mCable exit directionRearDegree of protection (IP)IP69KOutput typeReed contactShapeCylindricalOverall length of sensor60 mmHeight of sensor30 mmWidth of sensor30 mmSwitch without actuator
