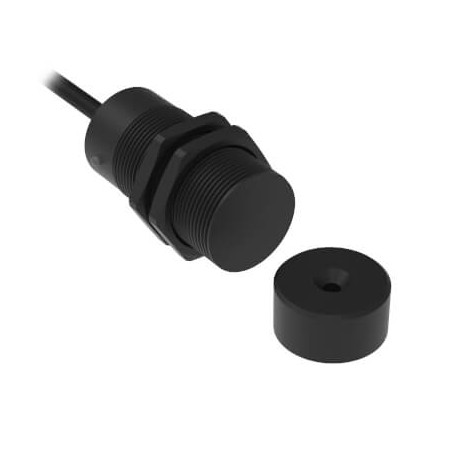

OMRON F3S-TGR-NBPR-21-05 F3S-TGR-NBPR-21-05 AA040362C F3STGRNBPR2105 OMRON Switch Sec. PLe, Cylindrical M30 Plast. Reed 2NC+1NO 5m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NBPR-21-05 AA040362C F3STGRNBPR2105 OMRON Switch Sec. PLe, Cylindrical M30 Plast. Reed 2NC+1NO 5m

F3S-TGR-NBPR-21-05

AA040362C

F3STGRNBPR2105

OMRON

1 Pcs.

Switch Sec. PLe, Cylindrical M30 Plast. Reed 2NC+1NO 5m Non-contact door switch, reed, barrel plastic M30, 2NC+1NO, 5m cable

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as an Omron F3S-TGR-NBPR-21-05 Switch Sec. PLe, Cylindrical M30 Plast. Reed 2NC+1NO 5m, this cylindrical safety sensor monitors industrial protective doors and interlocks. Reed safety switches utilize magnetic fields to verify the closed status of safety guards, safeguarding automated machinery and personnel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Plastic
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 1 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.5 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 30 mm
  • Height of sensor (EF007283): 30 mm
  • Length of sensor (EF007334): 60 mm
  • Ambient temperature during operating (EF007515): -25 °C

More info

▲
Door switch typeNon-contact, ReedGuard-lockCodingUncodedMaterial housingPolyesterAmbient temperature (operating)-25-80 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodCableCable length5 mCable exit directionRearDegree of protection (IP)IP69KOutput typeReed contactShapeCylindricalOverall length of sensor60 mmHeight of sensor30 mmWidth of sensor30 mmSwitch without actuator
