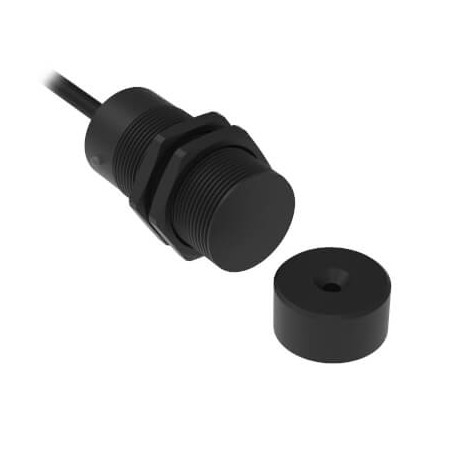

OMRON F3S-TGR-NBPC-21-M1J8 F3S-TGR-NBPC-21-M1J8 AA040333M F3STGRNBPC21M1J8 OMRON Switch Sec. PLe Cilínd. M30 Plast. Codif. 2NC+1NO LED .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NBPC-21-M1J8 AA040333M F3STGRNBPC21M1J8 OMRON Switch Sec. PLe Cilínd. M30 Plast. Codif. 2NC+1NO LED ..

F3S-TGR-NBPC-21-M1J8

AA040333M

F3STGRNBPC21M1J8

OMRON

1 Pcs.

Switch Sec. PLe Cilínd. M30 Plast. Codif. 2NC+1NO LED M12-8p Non-contact door switch, coded, barrel plastic M30, 2NC+1NO, M12 connector pigtail

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered as an Omron F3S-TGR-NBPC-21-M1J8 Switch Sec. PLe Cilínd. M30 Plast. Codif. 2NC+1NO LED .., this coded safety switch provides reliable non-contact detection for machine safety applications. Coded magnetic and electronic switches prevent tampering and ensure safety circuits remain active only when designated guards are securely closed. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Plastic
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Rated operation current Ie at AC-15, 125 V (EF007082): 0 A

More info

▲
Door switch typeNon-contact, Hall codedGuard-lockCodingBasicMaterial housingPolyesterAmbient temperature (operating)-25-80 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodM12 pigtail connectorCable length0.25 mCable exit directionLeftDegree of protection (IP)IP67Output typeTransistorShapeCylindricalOverall length of sensor60 mmHeight of sensor30 mmWidth of sensor30 mmSwitch without actuator
