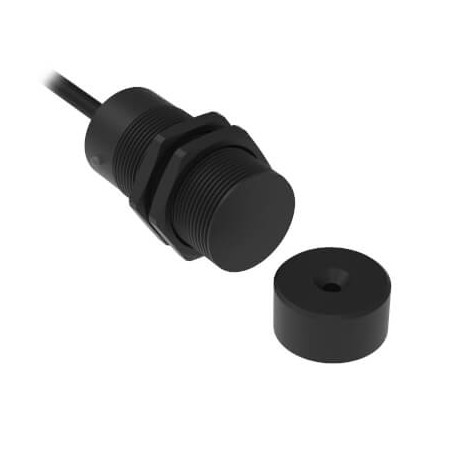

OMRON F3S-TGR-NBPC-21-10 F3S-TGR-NBPC-21-10 AA040332A F3STGRNBPC2110 OMRON Switch Sec. PLe, Cylindrical M30 Plast. Codif. 2NC+1NO LED.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3S-TGR-NBPC-21-10 AA040332A F3STGRNBPC2110 OMRON Switch Sec. PLe, Cylindrical M30 Plast. Codif. 2NC+1NO LED..

F3S-TGR-NBPC-21-10

AA040332A

F3STGRNBPC2110

OMRON

1 Pcs.

Switch Sec. PLe, Cylindrical M30 Plast. Codif. 2NC+1NO LED 10m Non-contact door switch, coded, barrel plastic M30, 2NC+1NO, 10m cable

Automation > Position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A safety switch such as the Omron F3S-TGR-NBPC-21-10 is engineered for non-contact monitoring of movable guards and safety doors in complex industrial environments. These devices form an integral part of machine safeguarding systems, ensuring hazardous processes are interrupted immediately upon unauthorized entry.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Plastic
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Rated operation current Ie at AC-15, 125 V (EF007082): 0 A
  • Width sensor (EF007094): 30 mm

More info

▲
Door switch typeNon-contact, Hall codedGuard-lockCodingBasicMaterial housingPolyesterAmbient temperature (operating)-25-80 °CDoor contacts NC2Door contacts NO1LED indicatorConnection methodCableCable length10 mCable exit directionLeftDegree of protection (IP)IP69KOutput typeTransistorShapeCylindricalOverall length of sensor60 mmHeight of sensor30 mmWidth of sensor30 mmSwitch without actuator

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
