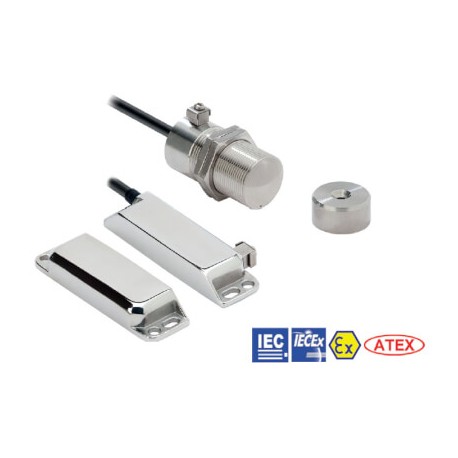

F3S-TGR-NBMX-21-10 AA040405M F3STGRNBMX2110 OMRON Switch Sec. PLe, Cylindrical M30 Metal ATEX 2NC+1NO 10m
F3S-TGR-NBMX-21-10
AA040405M
F3STGRNBMX2110
OMRON
1 Pcs.
Automation > Position switch with separate actuator
Contactless Switches TGR
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A non-contact safety switch is used in industrial automation environments to monitor the position of machine guards and access doors, helping to protect personnel by halting hazardous operations when opened. This Omron F3S-TGR-NBMX-21-10 unit integrates reliably into machine safety circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 10 m pre-wired: 2NC/1NO
- 10 m pre-wired: 2NC/1NO
- Serial switching: up to 6 pcs.
- Operating distance: OFF ON (Sao); ON OFF (Sar): 22 mm open
- Actuator approach speed: Min. Max.
- Enclosure protection: Flying lead
- Switching current: Min.
- Rated loads: NC contacts NO contact
- for F3S-TGR-NBMX: F39-TGR-NBMX-A
- Spacer (8 mm, Set of 2pcs.) 1: for F3S-TGR-NLMX
More info
▲Explosion proof non-contact switches
Explosion proof reed non-contact switches monitor the status of guarding doors in petrochemical and food applications with explosive atmospheres.
- Based on reed technology
- Connect up to 6 switches in series
- Operates with all Omron safety controllers
- Operates behind stainless steel fittings
- Non-contact – no abrasion – no particles
- Compensation of mechanical tolerances
- Suitable for high pressure cleaning, CIP/SIP processes
- Conforms to safety categories up PLe acc. EN ISO13849-1
- For use in hazardous areas IECEx and ATEX EExd IIC T6 (Gas and Dust). Designed for Petro-chemical and food applications where explosive atmospheres are present.
Ordering information
Elongated sensors
Barrel sensors
Specifications
Mechanical data
IP 67 Certification for IP67 but can be used for SIP/CIP and high pressure cleaning like IP69K) | |||
Electrical data
Ex specification
II 2G Ex mb IIC T6Gb, II 2D Ex mb IIC T80 Db IP67* |
Approved standards
Accessories
Set of Torx safety screws | ||
Spacer (8 mm, Set of 2pcs.)1 | ||
Wiring examples (Single head connection)
G9SASingle sensor application with G9SA-301 | ||||
