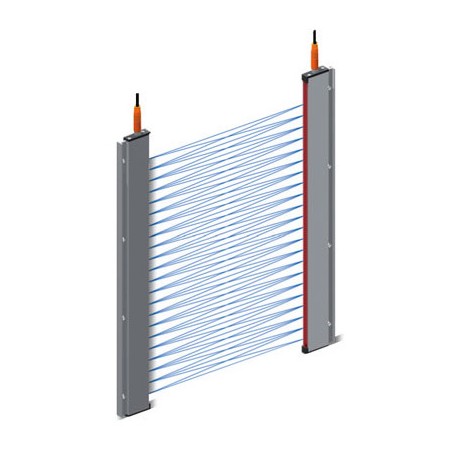

OMRON F3E-46-T6 F3E-46-T6 AA020972M F3E46T6 OMRON 46 channels, 136 beam, h:2000mm, Area sleuth. 1800mm Connector M8 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3E-46-T6 AA020972M F3E46T6 OMRON 46 channels, 136 beam, h:2000mm, Area sleuth. 1800mm Connector M8

F3E-46-T6

AA020972M

F3E46T6

OMRON

1 Pcs.

46 channels, 136 beam, h:2000mm, Area sleuth. 1800mm Connector M8 46 channels, 136 beams, h:2000mm, Detection area. 1800mm M8 connector

Automation > Multiple beam light curtain
Other Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Thin 9 mm shape for easy design-in in elevator constructions
  • High ambient light immunity
  • Robust aluminium housing
  • Fulfills requirements of EN81-70 (1800 mm models) for mounting in elevators

Specifications & ordering info

Ordering information

Sensor type

Detection
area

Pitch

Sensing
distance

Channels

Number of
optical axis

Connection method

Order code1
Potential free output





Through-beam


200 mm

40 mm

5 m

6

16

-

-

5 m

-

F3E-06-T1 5M

¢

-

-

-

F3E-06-T6

1320 mm

120 mm

12

34

-

-

5 m

-

F3E-12-T1 5M

¢

-

-

-

F3E-12-T6

1800 mm

120 mm

16

46

-

-

5 m

-

F3E-16-T1 5M

¢

-

-

-

F3E-16-T6

40 mm

46

136

-

-

5 m

-

F3E-46-T1 5M

¢

-

-

-

F3E-46-T6

Specifications

Item

Through-beam

F3E-06-T_

F3E-12-T_

F3E-16-T_

F3E-46-T_

Number of LEDs

6

12

16

46

Number of optical axes

16

34

46

136

Pitch

40 mm

120 mm

120 mm

40 mm

Vertical detection range

20 to 200 mm

20 to 1320 mm

20 to 1820 mm

Response time

max. 110 ms (signal interruption)

Light source (wave length)

Infrared LED (880 nm)

Power supply voltage

10 to 30 VDC

Ambient temperature

Operation

-20 to 60°C

Storage

-40 to 70°C

EMC conformity/standards

73/23/EWG; 89/336/EWG; 95/16/EG; EN81-1; EN81-2; EN12015; EN12016; EN61000-6-x

Degree of protection

IEC 60529 IP54

Dimensions

400 × 40.7 × 9 mm

1590 × 40.7 × 9 mm

2070 × 40.7 × 9 mm

2000 × 40.7 × 9 mm

Material

Case

Aluminum

1.Light-ON/Dark-ON settable. Common operation is Dark-ON
