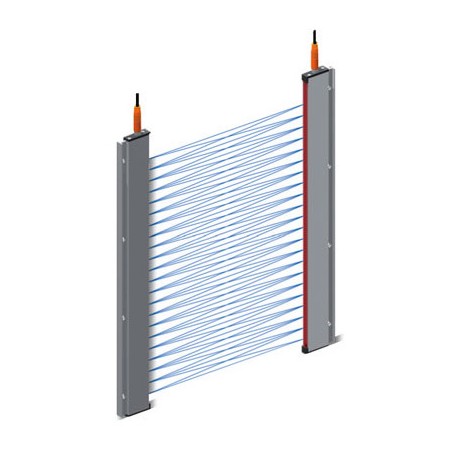

F3E-46-T1 5M AA020970C F3E46T15M OMRON 46 channels, 136 beam, h:2000mm, Area sleuth. 1800mm Cable 5M
F3E-46-T1 5M
AA020970C
F3E46T15M
OMRON
1 Pcs.
Automation > Multiple beam light curtain
Other Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron F3E-46-T1 5M area sensor provides extended vertical sensing coverage for material handling systems, automated storage racks, and industrial transport lines. These optical detection grids monitor wide areas to identify objects and track profiles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Through-beam: 200 mm
- 1320 mm: 120 mm
- 1800 mm: 120 mm
- 40 mm: 46
- Number of LEDs: 6
- Number of optical axes: 16
- Pitch: 40 mm
- Vertical detection range: 20 to 200 mm
- Response time: max. 110 ms (signal interruption)
- Light source (wave length): Infrared LED (880 nm)
- Power supply voltage: 10 to 30 VDC
- Ambient temperature: Operation
- Storage: -40 to 70°C
- EMC conformity/standards: 73/23/EWG; 89/336/EWG; 95/16/EG; EN81-1; EN81-2; EN12015; EN12016; EN61000-6-x
- Degree of protection: IEC 60529 IP54
- Dimensions: 400 × 40.7 × 9 mm
More info
▲- Thin 9 mm shape for easy design-in in elevator constructions
- High ambient light immunity
- Robust aluminium housing
- Fulfills requirements of EN81-70 (1800 mm models) for mounting in elevators
Specifications & ordering info
Ordering information
Order code1 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Specifications
73/23/EWG; 89/336/EWG; 95/16/EG; EN81-1; EN81-2; EN12015; EN12016; EN61000-6-x | |||||
